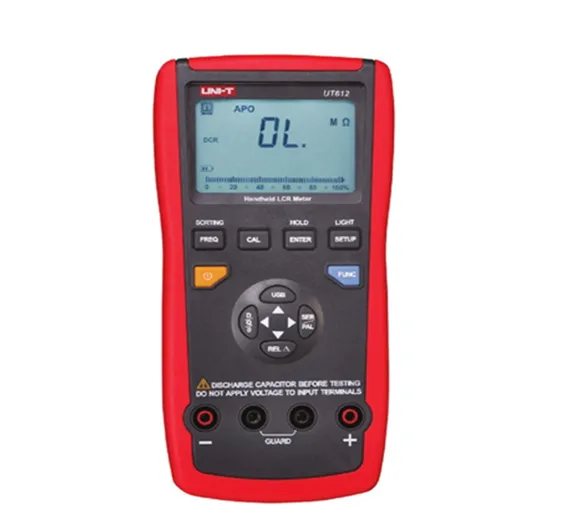

UNI-T UT612 LCR Meter
- UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds of measurement frequency in AC mode for selection.
- UT610 series can be easily operated in production lines, component inspection and electronic maintenance.
SKU: TCBOX76
Ask Price
UT610 series LCR meters are more advanced meters used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 kinds of measurement frequency in AC mode for selection. UT610 series can be easily operated in production lines, component inspection and electronic maintenance.
Technical Specifications of UNI-T UT612 LCR Meter:
Specifications | Range | UT612 |
Inductance (H) | 20uH~2000H | ±(0.5%+5) |
Capacitance (F) | 200pF~20mF | ±(0.5%+5) |
Resistance (Ω) | 20Ω~200MΩ | ±(0.3%+5) |
Test frequency (Hz) | 100Hz/120Hz/1kHz/10kHz/100kHz | √ |
Operating voltage | 0.6Vrms | √ |
Test parameters | L/C/R/DCR/Q/D/θ/ESR | √ |
Features | ||
Display count | 20000 | |
D/Q display count | 2000 | |
D/Q resolution | 0.001 | √ |
Auto range | √ | |
Test frequency real-time display | √ | |
Measurement mode | Series/Parallel | √ |
Auto power off | √ | |
Low battery indication | ≤6.8V | √ |
Data hold | √ | |
Relative mode | √ | |
USB interface | √ | |
USB interface/PC data records | 60000 | |
LCD backlight | √ | |
Analog bar graph | 26 | |
Deviation ratio measurement | √ | |
Comparison function | √ | |
Calibration function | √ | |
Output impedance | 120Ω | √ |
Auto LCR check and measurement | √ | |
General Characterisitics | ||
Power | 9V battery (6F22) or USB | |
Display | 40mm x 63mm | |
Product color | Red and grey | |
Product net weight | 374g | |
Product size | 96mm x 193mm x 47mm | |
Standard accessories | Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD | |
Standard individual packing | Gift box, English manual | |
Standard quantity per carton | 10pcs | |
Standard carton measurement | 370mm x 305mm x 475mm (0.097 CBM per standard carton) | |
Standard carton gross weight | 13.2kg | |
Optional accessory | USB power adaptor |
