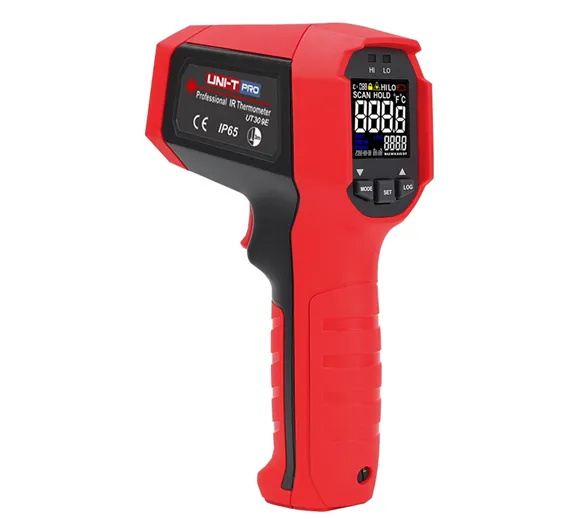

UNI-T UT309E Professional Infrared Thermometer
Other Meters

UNI-T UT309E Professional Infrared Thermometer

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

UT309 series (UT309A / UT309C / UT309E) professional infrared thermometer can determine surface temperature through the energy radiated by the target surface. It is designed to meet some of the highest protection ratings in UNI-T's product line, IP65 and 3m drop proof. With a rapid response rate of 250ms, high measurement accuracy, and multiple scanning modes, UT309 proves to be a necessary tool for engineers and technicians working in a various fields such as electrical distribution inspection, HVACR maintenance, transportation equipment inspection, instrument repair, and many more.

SKU: TCBOX87

Rs.12000 Rs. 15000

Color EBTN screen, 20:1 D:S ratio, 99 sets of data storage, time scheduled measurement.

Technical Specifications of UNI-T UT309E Professional Infrared Thermometer:

Specifications UT309E
Temperature range -35℃~850℃
-31℉~ 1562℉
Accuracy ≥0℃: ±1.8℃ or ±1.8%
<0℃: ±(1.8℃+0.1℃/℃)
≥32℉: ±3.6℉ or ±1.8%
<32℉: ±(3.6℉+0.1℉/℉)
D:S ratio 20:01
Response time <250ms
Emissivity 0.95 (default); 0.1~1.0 (adjustable)
Spectral response 8um~14um
Laser power < 1mW
Features
Auto power off
Low battery indication
LCD display Color EBTN
High/low LED alarm
Data hold
℃/℉ selection
MAX/MIN/AVG/DIFF mode
Lock measurement
Dual lasers
Data storage with date and time 99
Scheduled measurement
Monitoring measurement
Protective function
Operating temperature 0℃~50℃ (32℉~122℉)
Storage temperature  -20℃~60℃ (-4℉~140℉)
Operating humidity <90%RH (non-condensing)
Drop test 3m
IP rating IP65
General Characterisitics
Power 9V battery
Display 32mm x 32mm
Product color Red and grey
Product net weight 292g
Product size 189mm x 118mm x 55mm
Standard accessories Battery, carrying bag
Standard individual packing Gift box, blister, English manual
Standard quantity per carton 10pcs
Standard carton measurement 475mm x 335mm x 325mm
Standard carton gross weight 5.8kg
