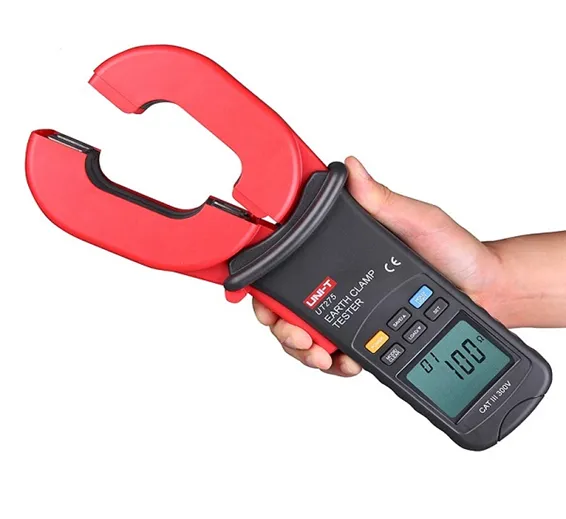

UNI T UT275 Earth Clamp Ground Tester Meter
Clamp Meters

UNI T UT275 Earth Clamp Ground Tester Meter

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

SKU: RAWLIXUNI

Ask Price

UNI T Earth Clamp Ground Tester Meter UT275 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. This UT-275 ground tester can measure resistance from 0.01Ω with a resolution of 0.001Ω. This clamp-type earth tester can also measure leakage current up to 30A. This clamp meter has double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.

Features Of UNI-T UT275 Earth Clamp Meter:

  • Earth resistance testing.
  • Leakage current.
  • Data hold function.
  • Data record function.
  • Auto power-off function.
  • Automatic calibration.
  • 4 digits LCD with backlight.

Specifications Of Earth Resistance Clamp Meter UNI-T UT-275:

  1. Earth Ground Resistance
  2. 0.01~0.099Ohm, ±(1%+0.01)
  3. 0.1~0.99Ohm, ±(1%+0.01)
  4. 1.0~49.9Ohm, ±(1.5%+0.1)
  5. 50.0~99.5Ohm, ±(2%+0.5)
  6. 100~199Ohm, ±(3%+1)
  7. 200~395Ohm, ±(10%+5)
  8. 400~590Ohm, ±(20%+10)
  9. 600~1000Ohm, ±(25%+20)
  10. Leakage Current
  11. 0.00~299mA, ±(2.5%+2mA)
  12. 0.30~2.99A, ±(2.5%+100mA)
  13. 3.00~30.0A, ±(2.5%+300mA)
  14. Display Count: 9999
  15. Auto Range: Yes
  16. Jaw Capacity: 28mm
  17. Auto Power Off: Yes
  18. Low Battery Indication: 5.2V
  19. Data Hold: Yes
  20. Data Logging: 30
  21. Data Recall: Yes
  22. LCD Backlight: Yes
  23. Auto Calibration: Yes
  24. Resistance Limit Alarm: Yes
  25. Power: 1.5V Alkaline Batteries(LR6)×4
  26. Product Color: Red and Grey
  27. LCD Size: 47mm X 28.5 mm
  28. Product Net Weight: 1320g
  29. Product Size: 293mm X 90mm X66 mm
  30. Datalogging: Yes
  31. Earth resistance clamps: Yes
  32. Leakage current: Yes
  33. Safety Rating: CAT III 300V

Package Included:

  • 1 x UNI-T UT275 Clamp Earth Ground Resistance Tester
  • 2 x Test Ring
  • 1 x English Manual
  • 1 x Tool Box

Best Online Shopping website for UNI T Earth Clamp Ground Tester Meter UT275 Clamp-Type Earth Tester Ground Resistance Meter at a cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad, and all over Pakistan.
