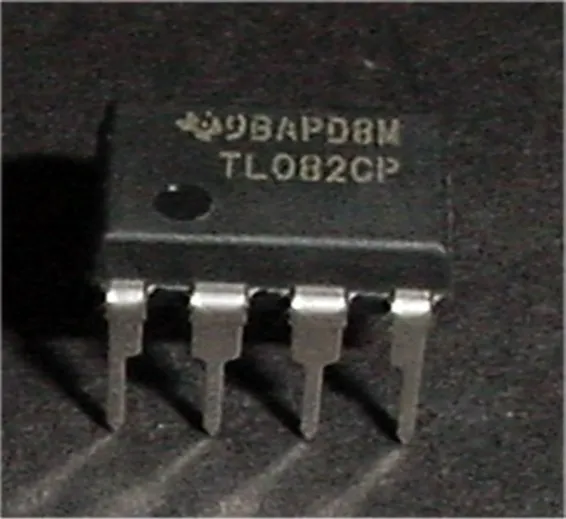

TL082 Wide Bandwidth Dual JFET Input Operational Amplifier in pakistan

TL082 Wide Bandwidth Dual JFET Input Operational Amplifier in pakistan

Condition: New
Availability: In Stock
Advance Payment Only


Rs.400 Rs. 500

General Description

These devices are low cost, high speed, dual JFET input operational amplifiers with an internally trimmed input offset voltage (BI-FET II™ technology). They require low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The TL082 is pin compatible with the standard LM1558 allowing designers to immediately upgrade the overall performance of existing LM1558 and most LM358 designs. These amplifiers may be used in applications such as high speed integrators, fast D/A converters, sample, and hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. The devices also exhibit low noise and offset voltage drift.

Features Internally trimmed offset voltage: 15 mV Low input bias current: 50 pA Low input noise voltage: 16nV/√Hz Low input noise current: 0.01 pA/√Hz Wide gain bandwidth: 4 MHz High slew rate: 13 V/µs Low supply current: 3.6 mA High input impedance: 1012Ω Low total harmonic distortion: ≤0.02% Low 1/f noise corner: 50 Hz Fast settling time to 0.01%: 2 µs
