Limit Switch With Fitting

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SKU: B 338,LS20,Th5,KRT

Rs.90 Rs. 113

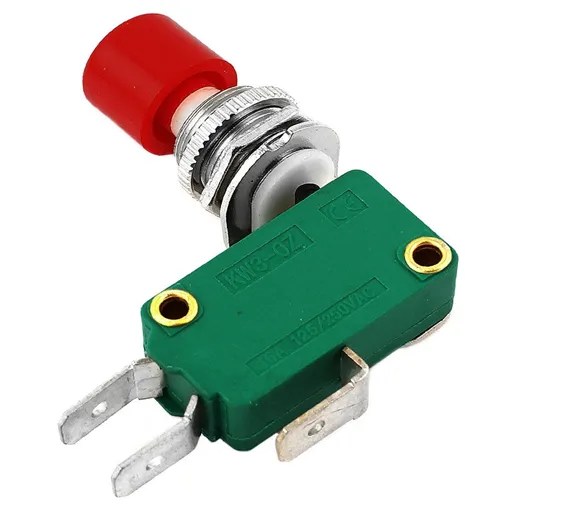

AC 125V/250V 16A SPDT NO NC Momentary Red Cap Push Button Micro Switch DS438

3 terminals, push button actuator with bracket, applicable to AC control circuits. Designed to control the movement of a mechanical part. The micro switch is applicable to AC control circuits, NO NC type and with a push button to control, single pole double throw and momentary contact type. High precision mechanism design offering acute operation and long life. Dia of Holes in Terminals: 1.6mm/ 0.06″. Thread Dia: 11.8mm/0.46″. Terminal Blade Width: 5mm/ 0.19″. Total Size: 4 x 1.6 x 4.6cm/ 1.6″ x 0.6″ x 1.8″ (L*W*H).

Product Name: Micro Switch

  • Model No: DS-438; Actuator Type: Push Button; Power: AC 250V 6A; AC 125V 15A
  • Contact configuration: SPDT; Body Size: 2.8 x 1.6 x 1.1cm/ 1.1″ x 0.6″ x 0.4″ (L*W*T)
  • Material: Plastic & Metal; Color: Green, Silver Tone; Net Weight: 18g
  • Package Content: 1 x Micro Switch
