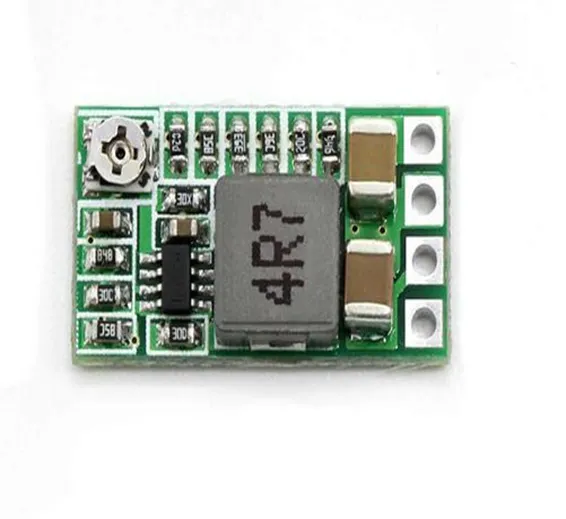

HW-613 Adjustable DC To DC Buck Converter Module 3A

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B416,TMD5,Th5,KRT

Rs.150 Rs. 188

This HW-613 buck converter (step-down converter) is a DC-to-DC power converter that steps down voltage (while stepping up current) from its input (supply) to its output (load).

Cool Applications Of Buck Converters

Feature HW-613 Adjustable DC To DC Buck Converter Module 3A:

  1. Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable Efficiency 97.5%
  2. Input Voltage:DC 4.5-24V
  3. Output Voltage: integration adjustable and fixed output, back side can choose fixed output voltage
  4. Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
  5. Output Current:3A (max),actual testing input 12V output 1.5A
  6. Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)

Specifications Of HW-613 Adjustable DC To DC Buck Converter Module 3A:

  1. Switch Frequency:500KHz
  2. Output Ripple Wave:20mV (12V to 5V 3A) 20m bandwidth
  3. Operating Voltage:-40 Celsius-85 Celsius
  4. Output Overvoltage Protection: no
  5. Static Current:0.85MA
  6. Load Adjust Rate:±1%
  7. Voltage Adjust Rate:±0.5%
  8. Dynamic Response Speed:5% 200uS
  9. Output Short Circuit Protection: yes
  10. Input Transposition Protection:no
  11. Enable Control: yes
  12. Connecting Type: soldering
  13. Input Way: soldering
  14. Output Way: soldering/pin
  15. Soldering Hole Space:2.54mm

Buy DC Adjustable Buck Converter Module 3A at Pakistan's Best Online Shopping Store at cheap price. Here you get the best DC to step down module. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan

Package Include HW-613 Adjustable DC To DC Buck Converter Module 3A:

  • 1x DC Adjustable Buck Converter Module 3A
