2 Channel Relay Module Relay Board Arduino Relay Module With Optocoupler
Other Modules

2 Channel Relay Module Relay Board Arduino Relay Module With Optocoupler

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B 182,,D164,IMP100,Th20,KRT08,N05

Rs.250 Rs. 313

2 Channel Relay Module Relay Board Arduino Relay Module With Optocoupler allows a wide range of microcontrollers such as Arduino, AVR, PIC, ARM with digital outputs to control larger loads and devices like AC or DC Motors, electromagnets, solenoids, and incandescent light bulbs. 4–channel relay interface board, and each channel needs a 15-20mA driver current. It can be used to control various appliance

Specifications:

  1. 5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
  2. Equiped Equipped with high-current relay, AC250V 10A ; DC30V 10A
  3. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low)
  4. Opto-isolated inputs
  5. Indication LED’s for Relay output status

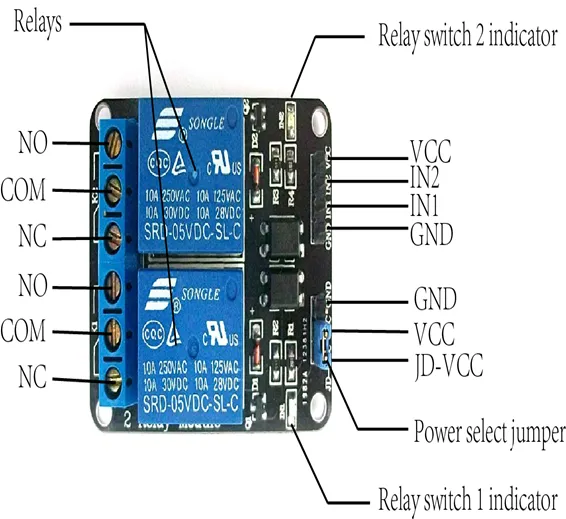

Module interface:

The positive (according to the relay voltage VCC: connect power supply)

GND: connect power negative

IN1: relay module (effective) high-level trigger signal trigger end

IN2: relay module (effective) high-level trigger signal trigger end

Meaning of High level and Low-level

High-level trigger refers to using the anode voltage at the VCC connection way of a trigger and triggers the end when the trigger side has the positive voltage or to trigger voltage when the relay is off. Low-level trigger refers to using the negative voltage at the GND connection way of a trigger and triggers the end when the trigger side has 0 v low voltage or voltage to can trigger, the relay is off.
