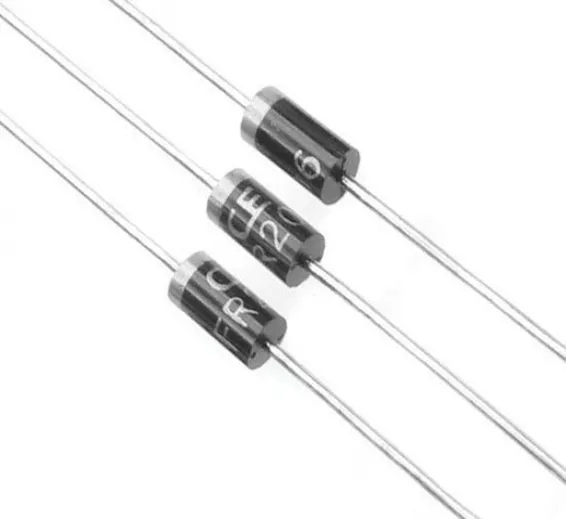

FR207 diode in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SKU: SB 173

Rs.3 Rs. 4

FR207 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band as shown below.

Diode polarity Current can flow from the anode to the cathode only and never from the cathode to the anode - FR207 diode is like a one way valve.

Dimensions FR207 diode

Features:

  • Maximum Recurrent Peak Reverse Voltage - 1000 V
  • Typical Junction Capacitance 40 pF
  • Operating and Storage Temperature Range -65...+150 °C

Specifications:

  • Wattage: 1W
  • Diode/rectifier type: DO-41
  • RoHS: Yes
  • Standard Recovery Power Rectifier
  • Repetitive Reverse Voltage Max, Vrrm: 50V
  • Forward Current Avg Rectified, IF(AV): 1A
  • Forward Surge Current Max, Ifsm: 30A
  • Forward Voltage Max, VF: 1.1V
  • Current Rating: 1A

Data Sheet:

https://img.filipeflop.com/files/download/Datasheet_Diodo_FR201-FR207.pdf

Package Includes:

10 x FR207 diode
