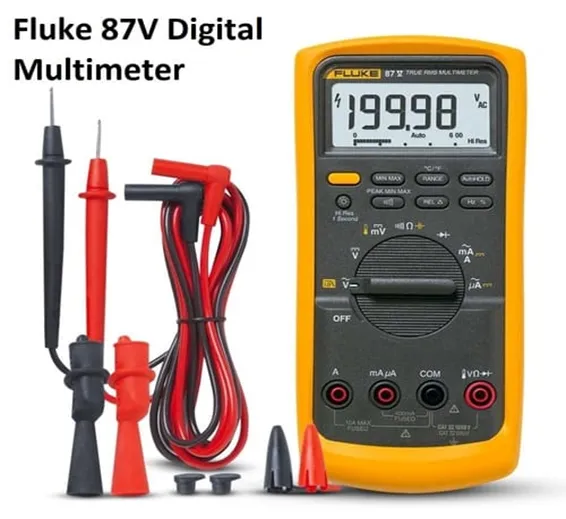

Fluke 87V Handheld True RMS Digital Multimeter
Multimeters

Fluke 87V Handheld True RMS Digital Multimeter

Condition: New
Brand: FLUKE
Availability: In Stock
Advance Payment Only
Share:

SKU: FLK87VR55

Ask Price

The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.

Features:

  • Designed and built in the U.S.
  • Comes with a lifetime warranty
  • Easy access door for fast battery changes without breaking the calibration seal
  • 6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution
  • Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
  • Includes an analog bar graph for fast changing or unstable signals
  • Presents a large digit display with bright, two-level backlight for easier reading in low light
  • Delivers 0.05% DC accuracy
  • Provides 10,000 µF capacitance range for components and motor caps
  • Auto and manual ranging for maximum flexibility
  • Holds readings on display for safe viewing after removing probes using Touch Hold technology

Specifications:

  1. Dc Voltage:
    • Maximum resolution: 10 µV
    • Accuracy: ±(0.05% + 1)
    • Max voltage: 1000 V
  2. Ac Voltage:
    • Dc Current:
      • Maximum resolution: 0.01 µA
      • Amps accuracy: ±(0.2% + 2)
      • Maximum amps: 10 A (20 A for 30 seconds maximum)
    • AC Current:
      • Dimension: 7.9 x 3.9 x 2.05" (201 x 98 x 52 mm)
      • 80 BK Temperature Probe: -40 to 500°F (-40 to 260°C), 2.2°C or 2% whichever is greater
      • Temperature: -328 to 1994°F (-200 to 1090°C) excluding probe
    • Frequency:
      • Maximum resolution: 0.01 Hz
      • Accuracy: ±(0.005% + 1)
      • Maximum frequency: 200 kHz
    • Capacitance:
      • Maximum resolution: 0.01 nF
      • Accuracy: ±(1% + 2)
      • Maximum capacitance: 9999 µF
    • Resistance:
      • Maximum resolution: 0.1 Ω
      • Accuracy: ±(0.2% + 1)
      • Maximum resistance: 50 MΩ
      • Maximum amps: 10 A (20 A for 30 seconds maximum)
      • Amps accuracy: ±(1.0% + 2) True RMS
      • Maximum resolution: 0.1 µA
      • Max voltage: 1000 V
      • Accuracy: ±(0.7% + 2) True RMS
      • AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz
      • Maximum resolution: 0.1 mV

Applications:

  • Motor drives
  • Plant automation
  • Power distribution
  • Electromechanical equipement

Package Include:

  • TL75 Test Leads
  • AC175 Alligator Clips
  • Holster
  • 9V Battery (Installed)
  • 80BK Temperature Probe

Best online shopping website for Fluke 87V Handheld True RMS Digital Multimeter Industrial Multitester Tool at cheap price in Lahore, Islamabad, Karachi, Faislabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi, and all over Pakistan
