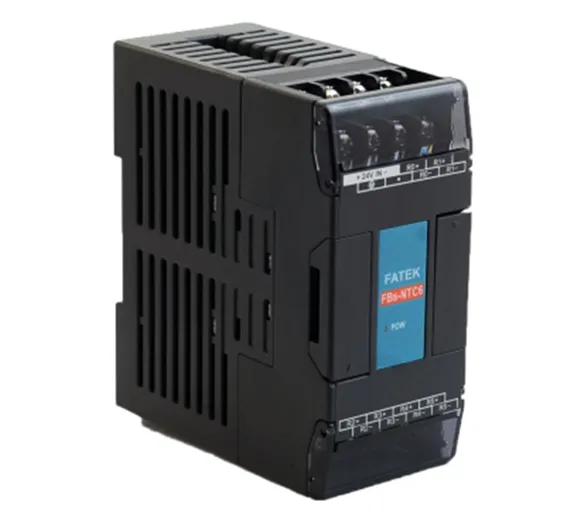

FATEK PLC FBs-6NTC 6-channel NTC Temperature Input Module in Pakistan

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: RAWLIXFAT

Rs.16000 Rs. 20000

FBs-NTC6 is one of the temperature input modules of FATEK FBs series PLC. It provides 6 channels of Negative (or Positive) temperature coefficient resistance measurement capability with 14-Bit resolution. The scan rate can be 1 or 2seconds by setting. All the optional features of this module are software configurable, there are no hardware jumpers or switches the user to setup

Specification

FBs-6NTC

Number of input points

6 points

Sensor type and

temperature measurement

range

NTC sensor

10 KΩ at 25˚C, B

optional -20~100˚C

Temperature Compensation

Resolution

0.1°C

Temperature refresh time

2 or 4 seconds

Overall Precision

±1% of full scale at 25˚C

Isolation method

Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute,no isolation between each channel

Power consumption

24VDC -15%/+20%,2W max.

Wiring mechanism

7.62 mm fixed terminal block

Data Sheet:

http://www.esea.cz/support/fatek/FBs_NTC6/cat_NTC6_enu.pdf

Package Include:

1XFATEK PLC

FBs-6NTC

6-channel NTC Temperature Input Module
