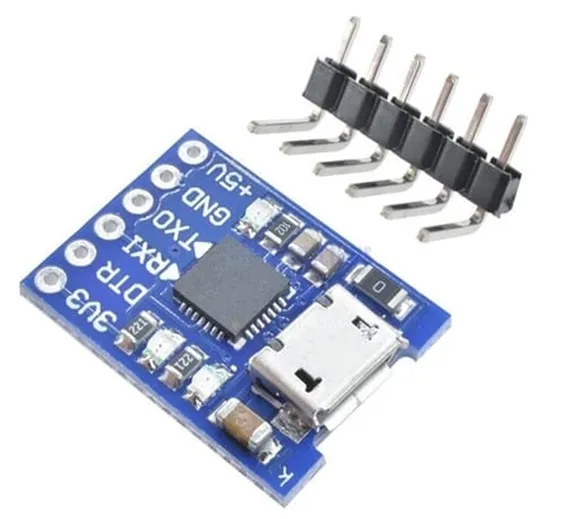

6 Pin CP2102 Micro USB to UART TTL Module Programmer

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B91,IMP50,Th10,KRT523

Rs.250 Rs. 313

6 Pin CP2102 Micro USB to UART TTL Module Programmer is one of the best micro USB modules. 6 Pin CP2102 Micro USB to UART TTL Module Programmer is a miniaturized version of the Universal Serial Bus interface developed for connecting compact and mobile devices such as smartphones, MP3 players, GPS devices, photo printers and digital cameras. Micro USB connectors exist or have existed in three forms: micro A, micro B and micro USB 3. USB 3 micro is much like micro B, but with an additional pin group on the side for twice the wires, enabling USB 3's greater speed. Like standard USB, the micro versions are plug-and-play and hot-swappable. The USB peripheral bus standard was developed jointly by Compaq, IBM, DEC, Intel, Microsoft, NEC, and Northern Telecom. The technology is available without charge for all computer and device vendors.

Features of 6 Pin CP2102 Micro USB to UART TTL Module Programmer:

  • Embedded USB transceiver, no external circuit device
  • Containing the clock circuit, no external circuit device
  • Contains power-on reset circuit
  • The on-chip voltage regulator within the 3.3V output
  • Meet the USB2.0 specification requirements
  • SUSPEND pins support USB suspend state
  • Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
  • Support data format is 8 data bits, 1 stop bit and the parity bit
  • Connotation 512 byte receive buffer and 512 bytes transmit buffer
  • Supports hardware or X-ON / X-OFF Handshake

Specifications of 6 Pin CP2102 Micro USB to UART TTL Module Programmer:

  1. The original chip CP2102, generate COM port after installing the driver.
  2. Then the standard input MICRO MINI-USB cable connected to the computer USB interface, with 3.3V and 5V two power output
  3. with a resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download
  4. on-board status indicators, receiving indicator properly installed drive status indicator remains, send and receive indicator flashes when the communication with run LED indicator.
  5. supports baud rates from 300bps ~ 1Mbps between
  6. the communication format support: 1) data bits 5,6,7,8; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity
  7. supported operating systems: Windows 8.1 / 7 / Vista / XP / 98, OS-X / OS-9, Linux
  8. USB seat MICRO MINI-USB interface Block
  9. chip components for the regular company of welding, stable quality, beautiful appearance
  10. with DTR trigger signal output can be directly for Arduino pro mini ATMEGA328P and other for Arduino board download traffic.
  11. module size: 16mm x 20mm super small.

Package Includes:

1 x 6 Pin CP2102 Micro USB to UART TTL Module Programmer
