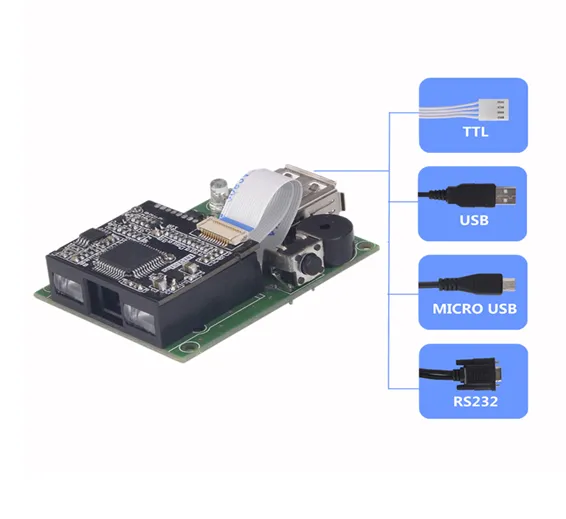

Wired CCD Barcode Scanner Module

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: B404

Rs.3500 Rs. 4375

Overview of Wired CCD Barcode Scanner Module:

Super scanning and decoding ability, can read incomplete and fuzzy codes.Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application.Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line.

Specifications of Wired CCD Barcode Scanner Module:

Product Specification

Wired CCD Barcode Scanner Module

CPU

ARM 32-bit Cortex

Optical Source

620nm Visible red light diode

Resolution Ratio

2500 pixel

Imaging Sensor

CCD

Trigger Mode

Continuous,Auto-Induction

Indication

Buzzer & LED

Infrared induction distance

150 - 200mm

Decoding Speed

280times/second

Interface

Micro USB,TTL,KB,RS232,USB

Resolution

4mil

Decoding Capability

Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar,

Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar etc

Max.Power

700mw

Working Voltage

DC5V

Storage Temperature

-40°C ~ 60°C

Working Temperature

0°C ~ 50°C

Relative Humidity

0 ~ 95%

Weight

5g (scanner without cable and development board)

12g(scanner without cable and with development board)

Dimensions

24*22*9 mm (scanner with cable and development board)

44*33*10 mm (scanner with cable and development board)

Features of Wired CCD Barcode Scanner Module:

  1. Colour: Black
  2. No Driver, plug and play
  3. 32 bit processor, More fast than 8 bit and 16 bit barcode scanners
  4. Scanning Speed: 280(scans/second), fast scanning rate
  5. Support reading bar codes from screen
  6. Super scanning and decoding ability, can read incomplete and fuzzy codes
  7. Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application
  8. Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing  industry, Power Industry, Kiosk,Locker, Factory assembly line

Package Includes:

  • 1 x Wired CCD Barcode Scanner Module
  • 1 x USB Male to Male Cable
  • 1 x User Manual
