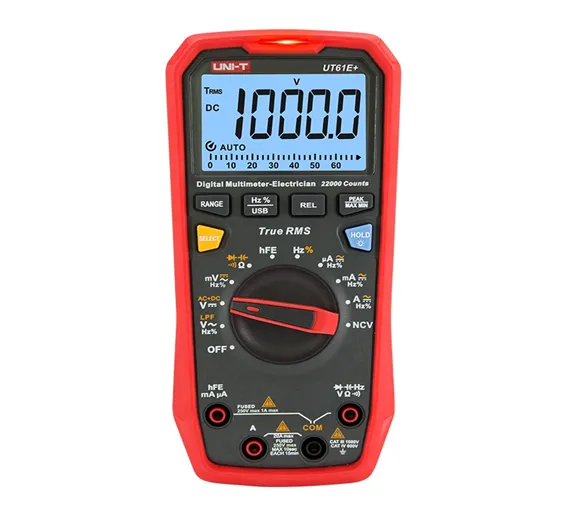

UT61E+ 1000V True RMS Digital Multimeter
- UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
- Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
SKU: TCBOX88
Ask Price
Features of UT61E+ 1000V True RMS Digital Multimeter:
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
- LPF ACV
- ACV+DCV
- Transistor hFE
- Peak Hold
Technical Specifications of UT61E+ 1000V True RMS Digital Multimeter:
Specifications | Range | UT61E+ |
Certifications (UT161 Series only) | CE/RoHS/cETLus | |
Safety ratings | CAT III 1000V/CAT IV 600V | |
AC voltage (V) | 1000V | ±(0.8%+10) |
DC voltage (V) | 1000V | ±(0.05%+5) |
AC current (A) | 20A | ±(0.8%+10) |
DC current (A) | 20A | ±(0.5%+10) |
Resistance (Ω) | 220MΩ | ±(0.5%+10) |
Capacitance (F) | 220mF | ±(3%+5) |
Frequency (Hz) | 220MHz | ±(0.01%+5) |
Duty cycle (%) | 0.1%~99.9% | ±(2%+5) |
Display count | 22000 | |
Bandwidth (Hz) | 40~10kHz | |
LPF ACV | √ | |
ACV+DCV | √ | |
Transistor hFE | √ | |
Peak Hold | √ | |
Analog bar | 46 | |
General Characteristics | ||
Power | 1.5V battery (R03) x 4 | |
Product net weight | 350g | |
Product size | 190mm x 90mm x 50mm | |
Standard accessories | Battery, gold plated test leads, USB cable, temperature multi-purpose socket, English manual | |
Standard individual packing | Gift box, cloth bag | |
Standard quantity per carton | 20pcs | |
Standard carton measurement | 480mm x 370mm x 365mm | |
Standard carton gross weight | 15.2kg | |
Optional accessories | Bluetooth/APP |
