USB To Serial USB TO UART TTL SERIAL CP2102 Module

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B91,D85,IMP50,Th20,KRT,N63

Rs.250 Rs. 313

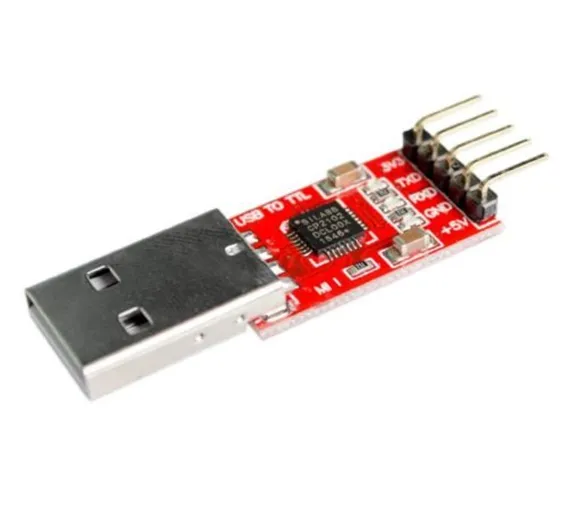

CP2102 chip from SiLabs is a single-chip USB to UART bridge IC. This cp2102 USB to serial requires minimal external components.CP2102 can be used to migrate legacy serial port based devices to USB.

Documents:

  • Driver

Features:

  1. Stable and reliable chipset CP2102.
  2. USB specification 2.0 compliant with full-speed 12Mbps.
  3. Standard USB type A male and TTL 6pin connector.
  4. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
  5. Baud rates: 300 bps to 1.5 Mbps
  6. Byte receive buffer; 640 byte transmit buffer.
  7. Hardware or X-On/X-Off handshaking supported.
  8. Event character support Line break transmission.
  9. USB suspend states supported via SUSPEND pins.
  10. Temperature Range: -40 to +85.
  11. Size: 42mm X 15mm.
  12. Weight: 4g

Pinouts:

  1. TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
  2. RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
  3. RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs.
  4. GND = Should be common to microcontroller ground.
  5. 3V3 = Optional output to power external circuit upto 50mA.
  6. 5V = Optional output to power external circuit upto 100mA
