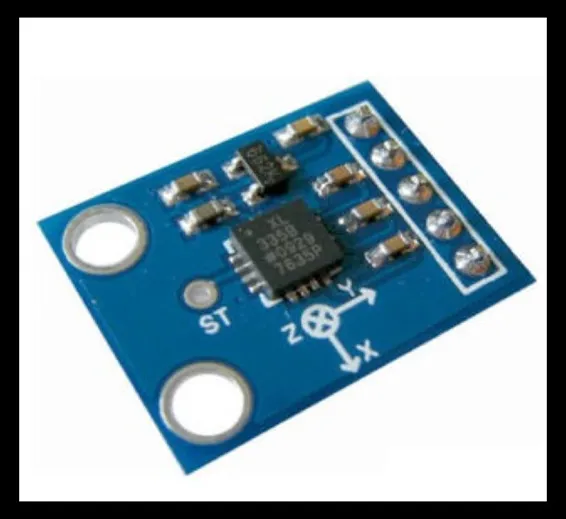

GY-61 Triple Axis Accelerometer ADXL335 in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SB 158 D62,IMP50,Th25,KRT

Rs.450 Rs. 563

he ADXL335 is a small, thin, low power, a complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration. This breakout board comes with an onboard voltage regulator and works at both 3.3V & 5V (3-5V)

An accelerometer is an electro-mechanical device that will measure acceleration forces. These forces may be static, like the constant force of gravity pulling at your feet, or they could be dynamic – caused by moving or vibrating the accelerometer

Package Includes:

  • 1x ADXL335 3-axis Analog Output Accelerometer Module angular transducer 3v-5v

Specifications and Features :

  1. 3V-6V DC Supply Voltage
  2. Onboard LDO Voltage regulator
  3. Can be interfaced with 3V3 or 5V Microcontroller.
  4. All necessary Components are populated.
  5. Ultra Low Power: 40uA in measurement mode, 0.1uA in [email protected] 2.5V
  6. Tap/Double Tap Detection
  7. Free-Fall Detection
  8. Analog output
  9. Build in ultra low noise linear LDO voltage regulator
  10. Built-in onboard filters, which reduce noise from the motor and other high current electronics
  11. All sensors connected to the I2C bus
  12. You can easily select two I2C address for MPU6050 by soldered jumper
  13. Power LED
  14. Build in Logic level converter for I2C
  15. Dimensions 20x16mm
  16. Designed for 5V logic level

Applications :

  1. FPV, RC and Robots systems
  2. GPS navigation systems
  3. Impact recognition and logging
  4. Gaming and virtual reality input devices
  5. Motion-activated functions
  6. Intelligent power saving for handheld devices
  7. Vibration monitoring and compensation
  8. Free-fall detection
  9. 6D-orientation detection

Attachments and Links :

  1. Arduino Code
