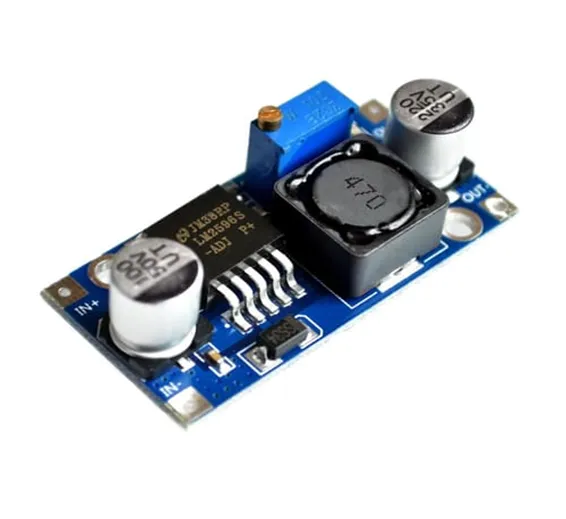

LM2596 Dc-Dc Buck Converter Step Down Module Power Supply

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B127, D123,IMP100,Th100,KRT130,N87

Rs.120 Rs. 150

HALL ROAD .ORG Is Best Online Shopping website for LM2596. Here you get LM2596 in reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta , Faisalabad and all over Pakistan. LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.



Features of LM2596 DC-DC Buck Converter Step Down Module Power Supply:



  • Output ripple: 30mA9maximum
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Dynamic Response speed: 5% 200uS
  • Input voltage:4.75-35V
  • Output voltage:1.25-26V(Adjustable)
  • Output current: Rated current is 2A, maximum 3A(Additional heat sink is required)
  • Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
  • Rectifier: Non-Synchronous Rectification
  • Module Properties: Non-isolated step-down module (buck)
  • Short Circuit Protection: Current limiting, since the recovery
  • Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)

Specifications of LM2596 DC-DC Buck Converter Step Down Module Power Supply:

  1. Regulator Type Step Down (Non-Isolated Input to Output )
  2. Input Voltage +4 to 40vdc
  3. Output Voltage +1.25 to 35vdc
  4. Output Current 2A Rated, ( 3A maximum with heat sink )
  5. Switching Frequency 150kHz
  6. Efficiency Up to 92% ( when the output voltage is set high )
  7. Dropout Voltage 2vdc minimum
  8. Load Regulation +/- 0.5%
  9. Voltage Regulation +/- 2.5%
  10. Temperature -40 to +85 deg C ( output power less than 10Watts )
  11. PC Board Size 43.6mm L x 21mm W x 14mm H

Package Includes:

1 x LM2596 Dc-Dc Buck Converter Step Down Module Power Supply
