Signal Generator

UNI-T UTG 9005C Function Generator

Condition: New
Availability: In Stock
Advance Payment Only
Share:     Faceook Twitter

SKU: TMD1,Th6,KRT

Rs.17000 Rs. 21250
Discontenue product: Find latest model by clicking here

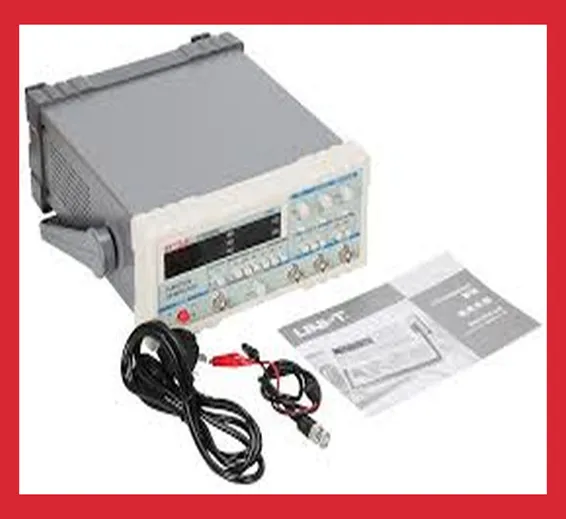

Function generator for the output of sine, square, triangle, pulse, TTL and ramp signals with a frequency range up to 5 MHz. 4-digit frequency display, 3-digit amplitude display. The device can also be used as a frequency counter. Operating voltage: 220 VAC. Dimensions: 320 x 240 x 100 mm / 3.0 kg. Incl .: BNC to Krokoclip cable, power cable, user manual.

  1. • Amplitude: 1 mVpp to 20 Vpp
  2. • Accuracy / Resolution: ± 5.0% / 0.1 mV
  3. • Frequency: 5 Hz to 5 MHz
  4. • Accuracy / Resolution: ± 1.0% / 1 mHz
  5. • Output
  6. Power: 2 Wpp
  7. • Output
  8. Impedance : 50 • Attenuation: 20dB + 40dB
  9. • DC Offset: -10V ... + 10V
  10. • Display: 4 Digits Frequency / 3 Digits Amplitude
  11. • Duty Cycle: 10% - 90%
  12. • Distortion, sine: <2% at 1 kHz
  13. • Rise time, square wave: <35nS
  14. • VCF:> 100: 1
  15. • Counter range: 0.2Hz - 10MHz
  16. • Amplitude range: 0.5Vpp - 5Vpp
  17. • Input impedance: 10k
  18. Housing color Light gray / Gray
  19. Weight:3kg
  20. width 320 mm
  21. height 100 mm
  22. depth 240 mm
