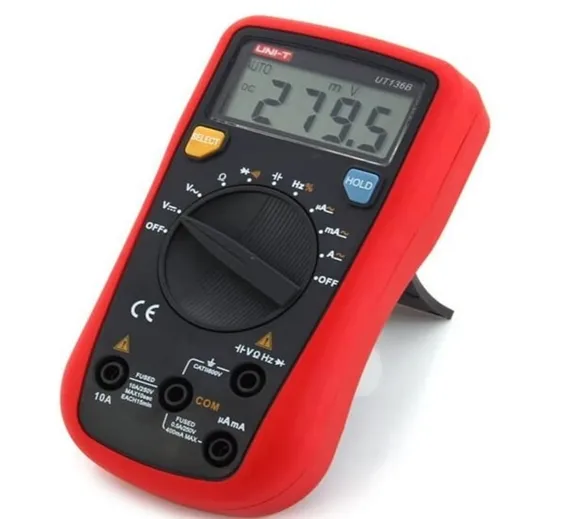

UNI T Digital Multimeter UT136B

UNI T Digital Multimeter UT136B

Condition: New
Brand: UNI-T
Availability: Out Of Stock
Advance Payment Only


Ask Price

UNI T Digital Multimeter UT136B measures or tests DC and AC voltage, DC and AC current, resistance, capacity, diodes and in-circuit continuity (buzzer) test. This UT-136B handy digital multimeter is kind of basic function/low-cost multimeter not with high accuracy. UT 136 B mini handheld multimeter is auto power-off; low battery display; diode test; continue buzzer. This small multimeter is fit for schools, factories, families, and amateur wireless lovers. UT 136 B meter is high sensitivity AC / DC voltage DC current measurement tool.

Features Of UNI-T UT136B AC DC Frequency Resistance Tester:

  • Auto Power Off; Low Battery Display; Diode Test; Continue Buzzer
  • Auto Data Hold; Max. Display: 3999
  • Tilt stand design, three observation angles is in favour of reading the display
  • High sensitivity AC / DC voltage DC current measurement
  • Fit for schools, factories, families, and amateur wireless
  • Small and compact design
  • It is made of superior material, durable and practical

Specifications Of UNI-T UT136B Auto Range Digital Multimeter:

  1. mA range: F1 fuse 5x20mm, F 0.5A H 250V
  2. 10A range: F2 fuse 5x20mm, F 10A H 250V
  3. DC voltage: 400mV/4V/40V/400V/500V;±(0.8%+1)
  4. AC voltage: 400mV/4V/40V/400V/500V; ±(1.2%+3)
  5. DC current: 400uA/4mA/40mA/400mA/4A/10A ; ±(1.0%+2)
  6. AC Current: 400uA/4mA/40mA/400mA/4A/10A ; ±(1.2%+5)
  7. Resistance: 400ohm/4000ohm/40kohm/400kohm/4Mohm/40Mohm ; ±(1.0%+2)
  8. Capacitance: 4nF/40nF/400nF/4uF/40uF/100uF ; ±(4.0%+3)
  9. Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ; ±(0.5%+3)
  10. Duty cycle: 0.1% ~ 99.9%
  11. Frequency: 40Hz ~ 400Hz. Display effective value of sine wave(average value) each measurement is applicable from 5% of range as reference.
  12. Power: 9V Battery
  13. Product Color: Red and Iron Grey
  14. The max display: 3999
  15. Work Environment: 0℃-40℃
  16. Storage Environment: -10℃-50℃
  17. Function: DCV,ACV,DCA,ACA ,Diode
  18. Product Dimensions: (13.5 x 6.5 x 3.5)cm / (5.31 x 2.56 x 1.38)"(L x W x H)
  19. Product Net weight: 315g / 11.11oz

Package Includes:

  • 1 x UNI-T UT136B Digital Multimeter
  • 1 x Test Lead
  • 1 x English User Manual
