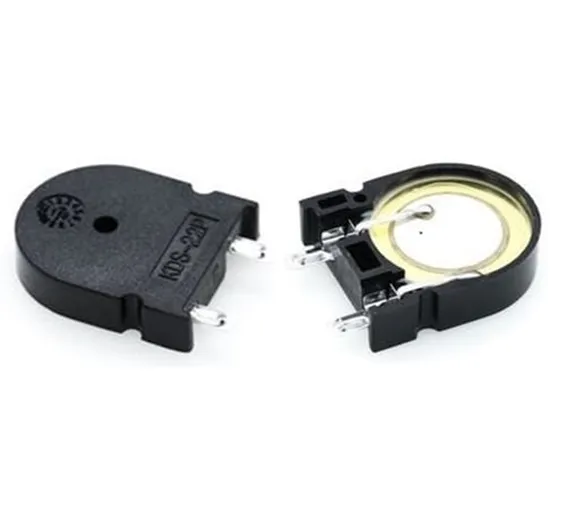

Piezo Buzzer U Shaped Audio Indicator KDS 22mm X 7.0mm
Lights

Piezo Buzzer U Shaped Audio Indicator KDS 22mm X 7.0mm

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B318 tmd

Rs.20 Rs. 25

A piezo buzzer is a type of electronic device that’s used to produce a tone, alarm, or sound. 85db passive piezo alarm is lightweight with simple construction, and it’s typically a low-cost product. Yet at the same time, depending on the piezo ceramic buzzer specifications, it’s also reliable.KDS series products of piezoelectric passive sounder consist of a piezoelectric element and resonant chamber shell, driven by an external circuit to produce sound.

Features Of KDS Pin Type 9V Piezoelectric Passive Alarm:

  • Low power consumption
  • Low-frequency resonance
  • Applicable to wave soldering assembly
  • No electromagnetic interference and radio frequency interference.

Specifications Of 85db U shaped Piezo Sounder:

  1. Model No.: KDS-22P-2.0AS
  2. SPL: 85dB min. at 2.0kHz 9Vp-p Square Wave/10cm
  3. Resonant Frequency: 2.0 kHz
  4. Static Capacitance: 20.0nF±30% at 100Hz
  5. Rated Voltage: 30Vp-p max
  6. Operating Temperature: -20℃~+70℃
  7. Storage Temperature: -30℃~+80℃
  8. Case Material: PBT(Black)
  9. Weight: 2.8 g

Applications:

  • various office equipment such as printers and keyboards
  • Various household appliances such as microwave ovens, air conditioners, electromagnetic ovens, washing machines, and small household appliances
  • communication equipment, computer peripheral equipment, etc.

Package Include:

  • 1x piezo buzzer KDS-22P
