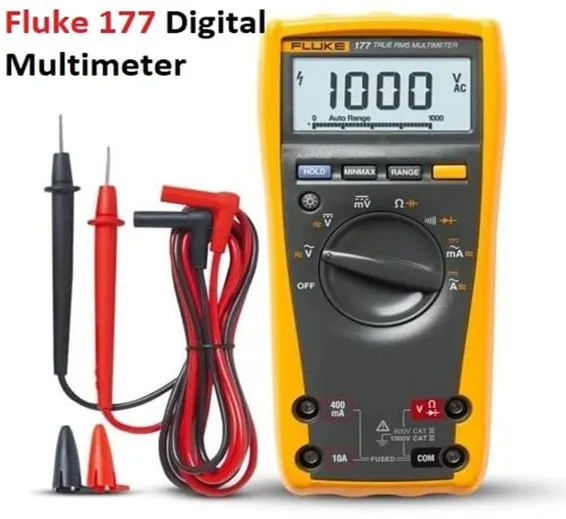

Fluke 177 True RMS Digital Multimeter
Multimeters

Fluke 177 True RMS Digital Multimeter

Condition: New
Brand: FLUKE
Availability: In Stock
Advance Payment Only
Share:

SKU: FLK177R54

Ask Price

Fluke 177 True-RMS Digital Multimeter delivers the right features for electrical maintenance experts. With its precision, reliability, and ease of use, the Fluke 177 DMM is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems. With the Fluke 177 Digital Multimeter, you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with an analog bar graph, and a backlight. Plus a limited lifetime warranty.

Features:

  • True RMS digital multimeter with the features professional technicians prefer
  • Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
  • Measures AC and DC voltage to 1000 V
  • Delivers accurate True RMS AC current and voltage plus frequency, capacitance, resistance, continuity, and diode measurements
  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Features digital display with backlight for working in dim lighting
  • Allows closed case calibration through the front panel

Specifications:

  1. Voltage DC:
    • Accuracy: ±(0.09% + 2)
    • Max. resolution: 0.1 mV
    • Maximum: 1000 V
  2. Voltage AC:
    • Maximum: 1000 V
    • Max. resolution: 0.1 mV
    • Accuracy: ±(1.0% + 3)
  3. Current DC:
    • Maximum: 10 A
    • Max. resolution: 0.01 mA
    • Accuracy: ±(1.0% + 3)
  4. Current AC:
    • Accuracy: ±(1.5% + 3)
    • Max. resolution: 0.01 mA
    • Maximum: 10 A
  5. Resistance:
    • Accuracy: ±(0.9% + 1)
    • Max. resolution: 0.1 Ω
    • Maximum: 50 MΩ
  6. Capacitance:
    • Accuracy: ±(1.2% + 2)
    • Max. resolution: 1 nF
    • Maximum: 10,000 µF
  7. Frequency:
    • Accuracy: ±(0.1% + 1)
    • Max. resolution: 0.01 Hz
    • Maximum: 100 kHz
  8. Temperature:
    • Accuracy: ±(1.0% + 10)
    • Max. resolution: 0.1°C
    • Range: -40°C / 400°C
  9. Operating temperature: -10°C to +50°C
  10. Storage temperature: -30°C to +60°C
  11. Humidity (without condensation):
    • 0% – 90% (0°C – 35°C)
    • 0% – 70% (35°C – 50°C)
  12. Overvoltage category:
    • EN 61010–1 to 1000 V CAT III
    • EN 61010–1 to 600 V CAT IV
  13. Agency approvals: UL, CSA, TÜV listed and VDE Pending
  14. Dimensions (L x W x H): 1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)

Fluke 177 pdf

Package Include:

  • Fluke 177 meter
  • Users manual
