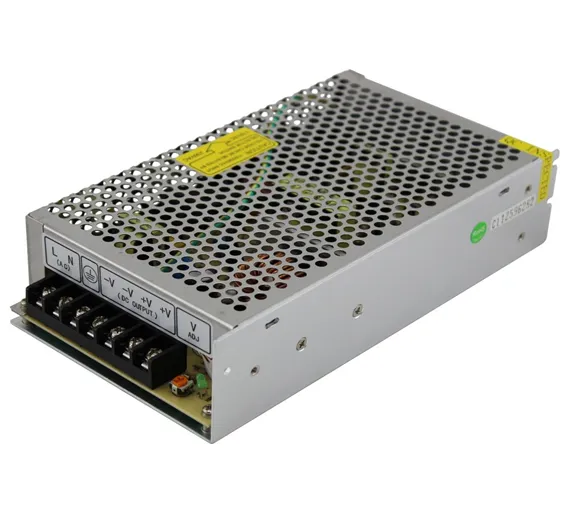

24V 20Amp Power Supply In Pakistan is AC to DC Power Supply which is suitable for PLC, MICROCONTROLLER , STEPPER MOTOR , CNC etc. This 24v 20A power supply is very relible for industrial and domestic use.
- DC Voltage: 24V
- Rated Current: 20A
- Current Range: 0-20.5A
- Rated Power: 480W
- Ripple & Noise (maximun): 150mV
- Voltage Tolerance: +/- 2.0%
- Line Regulation: +/- 0.5%
- Load Regulation: +/- 0.5%
- Setup, Rise, Hold Up Time: 200ms, 100ms, 50ms, at full load
- Voltage Range: 180-264V AC by
- Frequency Range: 47-63HZ
- Efficiency: 85%
- Inrush Current: 13A/115V 25A/230V
- Leakage Current: <1mA/240VAC
- Working Temp. : -20℃~60℃
- Working Humidity : 20%-90% RH
- This product is suitable for indoor use, non-detachable power shell.
- External power supply round hole mesh heat vents, in the range of 20 inch within the outlet Do not place other flammable items.
- Within 2 inch the product range not place other items, to ensure that the powersupply has good thermal environment, to ensure safety.
- Please accurately calculate the load power, do not overload. When thepower is working, do not touch the case.
- Do not short-circuit output if no output, please use off one minute re-energized.
- Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.
- Professional installation of qualified electrician is highly recommended.
