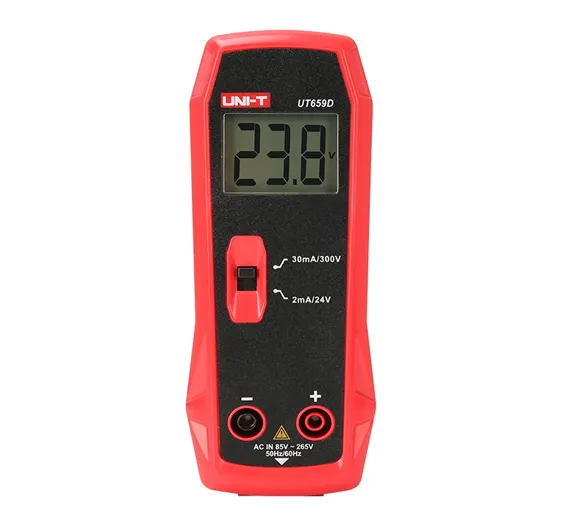

UNI-T UT659D LED tester
Other Meters

UNI-T UT659D LED tester

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after  1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.

SKU: TCBOX83

Rs.3850 Rs. 4813

UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after  1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.

Technical Specifications of UNI-T UT659D LED tester:

Specifications Range UT659D
Certifications CE/RoHS
Output voltage 24V
300V
Output current 2mA
30mA
Continuity Output voltage: 5V (DC)
Measuring resistance: 0~99.9Ω
Input range 85V to 265V @ 50/60Hz
Backlight function constant on
Safety protection High-impedance open circuit
Operating temperature 0°C~40°C
Storage temperature  -10°C~50°C
Relative humidity <80% RH
Operating altitude ≤2000m
Drop protection 1m
Category ratings CAT II 300V
General Characterisitics
Power AC 85V~260V, 50Hz/60Hz
Display 60mm x 35mm
Product net weight 175g
Product size 150mm x 56mm x 42mm
Standard accessories Power cable, test leads,  English manual
Standard individual packing Gift box, blister
Standard quantity per carton 20pcs
Standard carton measurement 345mm x 335mm x 245mm
Standard carton gross weight 7.7kg
