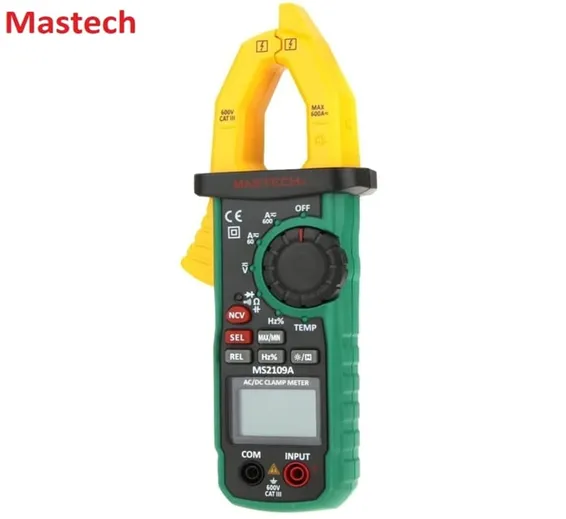

Digital Clamp Meter 600A Mastech MS2109A
Clamp Meters

Digital Clamp Meter 600A Mastech MS2109A

Condition: New
Availability: In Stock
Advance Payment Only


Ask Price

This Mastech Ms2109A is a portable professional measuring instrument with LCD and backlight for easy reading. A digital clamp meter MS2101 is Used to measure AC/DC current, voltage, resistance, capacitance, frequency and duty cycle. The Handheld True RMS clamp Multimeter design for the range switch makes measurement easier. Overload protection and low battery indication are provided. Single Hand Digital Tong Tester is an ideal multi-functional instrument with scores of practical applications for professional, workshop, school, hobby and home use.

Features Of Single Handed True RMS Digital AC/Dc Clamp Ampere Meter MS2109A:

  • Auto measuring range.
  • Full measuring range overload protection.
  • The maximum allowable voltage between measurement end and ground: 600V DC or 600V AC Operational height: maximum 2000m Display: LCD
  • Displayed maximum value: 5999 digits.
  • Polarity indication: automatic indication, means negative polarity.
  • Exceeding measuring range display: '0L'or '-0L'. Sampling rate: about 3 times/s, simulation bar 30 times/s. Unit display: has the function and power unit display.
  • Auto-off time: 15 min

Specifications Of Mastech MS2109A Portable Professional Auto range AC/DC Current Tong Tester :

  1. DC Voltage:
    • Range:600mV/6V/60V/600V
    • Accuracy±(0.7% +2)
  2. AC Voltage:
    • Range:6V/60V ±(0.8% +3)
    • Range:600V ±(1.0% +4)
  3. DC Current:
      • Range:60A/600A
      • Accuracy:±(3% +6)
    • AC Current:
        • Range:60A/600A
        • Accuracy:±(2.5% +6)
      • Resistance:
        • Range:600/6k/60k/600k ohm ±(0.8% +3)
        • Range:6M/60M ohm ±(1.2% +3)
      • Capacitance:
        • Range:40nF/400nF/4µF/40µF/400µF/4000µF
        • Accuracy:±(4.0% +5)
      • Temperature:
        • Range:-20°C~1000°C
      • Duty ratio:0.1 - 99.9% ±(3.0%+5)
      • Dimensions: 8.66 in x 3.15 in x 1.61 in (22 cm x 8 cm x 4.1 cm)
      • Weight 20.46 oz (580 g)

Package includes:

  • 1x Digital clamp multimeter 600A Mastech MS2109A

Best Online Shopping Website for Handheld Professional Digital clamp multimeter 600A Mastech MS2109A Ac current Ammeter Voltmeter tong Tester in cheap price in Karachi Lahore Islamabad Rawalpindi Sukkur Peshawar Multan Quetta Faisalabad and all over Pakistan
