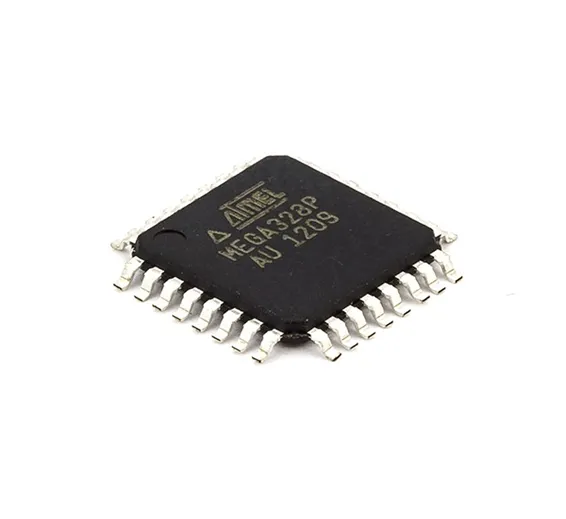

TQFP ATMEGA328P-AU ATMEGA328P AU IC for Arduino
Semiconductor ICs

TQFP ATMEGA328P-AU ATMEGA328P AU IC for Arduino

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SKU: IMP30,TH10,KRT

Rs.800 Rs. 1000

Atmel ATMega328P 8-Bit Microcontroller in 28 pin SMD package. Its like the ATmega168, with double the flash space. 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC. Runs up to 20MHz with external crystal. The package can be programmed in circuit. 1.8V to 5V operating voltage!

ATmega328P – TQFP

This is Atmel’s high performance, low power 8-bit AVR ATmega328P-AU microcontroller in the TQFP package.

Features:

  • 1.8-5.5V operating range
  • Up to 20MHz
  • Part: ATMEGA328P-AU
  • 32kB Flash program memory
  • 1kB EEPROM
  • 2kB Internal SRAM
  • 2 8-bit Timer/Counters
  • 1 16-bit Timer/Counter
  • RTC with separate oscillator
  • 6 PWM Channels
  • 8 Channel 10-bit ADC
  • Serial USART
  • Master/Slave SPI interface
  • 2-wire (I2C) interface
  • Watchdog timer
  • Analog comparator
  • 23 IO lines
  • Data retention: 20 years at 85C/ 100 years at 25C

Documents:

  • ATmega328P Datasheet
  • Atmel Product Page
