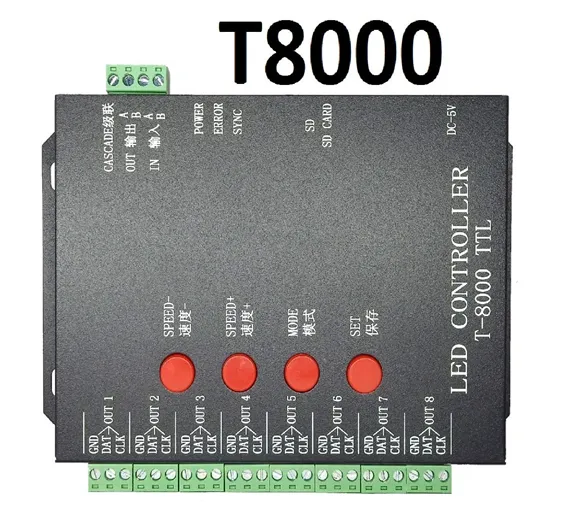

t8000 Pixel Control Software Programmable Led Controller

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: RAWLIXt80

Rs.17500 Rs. 21875
  • 8000 LED pixel CONTROLLER
  • 2811 And 1903 IC SUPPORTED
  • Multiple actions
  • Design will be made available one time
  • Dc pin will also be available
Size L175*W132*H27mm voltage DC5V Number of pixels 1024 pixel *8 Speed Control 100 adjustable Signal port 3pin connect port SD card 128MB-2GB Support chip LPD8806/LPD8809/LPD6803/D705/1101/6909/6912/TM1803/TM1804/TM1809/TM1812/TM1903/TM1904/TM1909/TM1912/UCS6909/UCS6912/UCS7009/UCS5903/UCS1903/UCS1909/UCS1912/UCS3903/DMX512/WS2801/WS2803/WS2811/DS189/TLS3001/TLS3002/TLS3008/P9813/SM16715/SM16716/BS0901,BS0902/BS0815

1. 32-256 Gray level,Support software Gamma correction. 2. Support the rules and special-shaped handle. 3. Eight--port output,every port can support 512-1024 pixels. 4. Offline (SD Card) control ,can be multiple controllers used in combination, play back content stored in the SD card. 5. Compatible with single and dual IC, if you control a single line IC LED lights, without being connected to the CLK line. 6. New controller have a screen, The controller can be encrypted to limit the times of use. NOTE:

1. When controller control less than 512 lamps the frame rate can reach 30fps. When T-1000 controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically. 2. In the 2012 production version of the controller to add a Chinese flag on the surface, you must use the new software.

Size L175*W132*H27mm voltage DC5V Number of pixels 1024 pixel *8 Speed Control 100 adjustable Signal port 3pin connect port SD card 128MB-2GB Support chip LPD8806/LPD8809/LPD6803/D705/1101/6909/6912/TM1803/TM1804/TM1809/TM1812/TM1903/TM1904/TM1909/TM1912/UCS6909/UCS6912/UCS7009/UCS5903/UCS1903/UCS1909/UCS1912/UCS3903/DMX512/WS2801/WS2803/WS2811/DS189/TLS3001/TLS3002/TLS3008/P9813/SM16715/SM16716/BS0901,BS0902/BS0815

1. 32-256 Gray level,Support software Gamma correction. 2. Support the rules and special-shaped handle. 3. Eight--port output,every port can support 512-1024 pixels. 4. Offline (SD Card) control ,can be multiple controllers used in combination, play back content stored in the SD card. 5. Compatible with single and dual IC, if you control a single line IC LED lights, without being connected to the CLK line. 6. New controller have a screen, The controller can be encrypted to limit the times of use. NOTE:

1. When controller control less than 512 lamps the frame rate can reach 30fps. When T-1000 controls more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically. 2. In the 2012 production version of the controller to add a Chinese flag on the surface, you must use the new software.
