SOP SSOP 4 SMD Adapter Board 1.2mm/0.65mm 28 Pins Pitch IC Socket Adapter Plate PCB For Arduino

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B 232,IMP0,Th0,KRT

Rs.80 Rs. 100

So, you've got a project in mind but the chip you want to use is a fine pitch 0.65mm/1.2mm chip. Well, this adapter board could be just what you need. When using this board, please bear in mind that you can't solder the smaller 0.5mm pitch devices with a soldering iron. Use solder paste (with a stencil) and a hot air gun or oven.

Features:

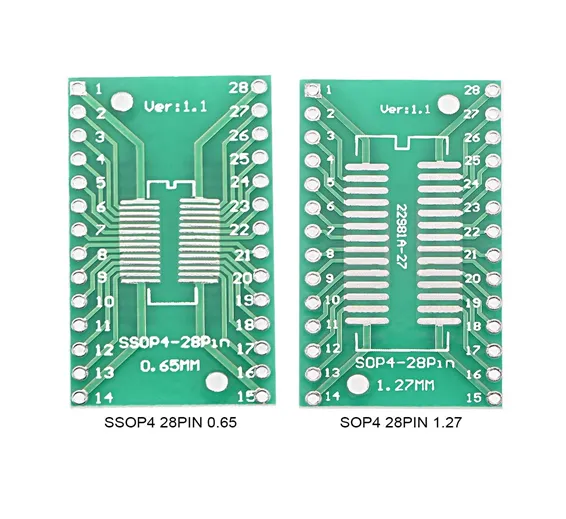

  1. Front side : SSOP4-28PIN-Pitch 0.65MM
  2. Backside: SOP4-28PIN-Pitch 1.27MM

Parameter:

  1. Product Name: Double-Sided Pre Tinned PCB Board
  2. Material: Glass Fiber FR-4
  3. Board size: approx. 0.8 x 1.4 inch / 20.3 x 35.5 mm ( W x L )
  4. Terminal Number: 28
  5. Thickness: approx. 1.6mm
  6. Hole Diameter: 1 mm
  7. Hole Pitch: 2.54mm (Through 2.54 pitch pin header, it can be used to the SIP3 DIP breadboard.)
  8. Color: Green, Silver Tone

Package Includes:

1x SOP SSOP 4 SMD Adapter Board 1.2mm/0.65mm 28 Pins Pitch IC Socket Adapter Plate PCB For Arduino
