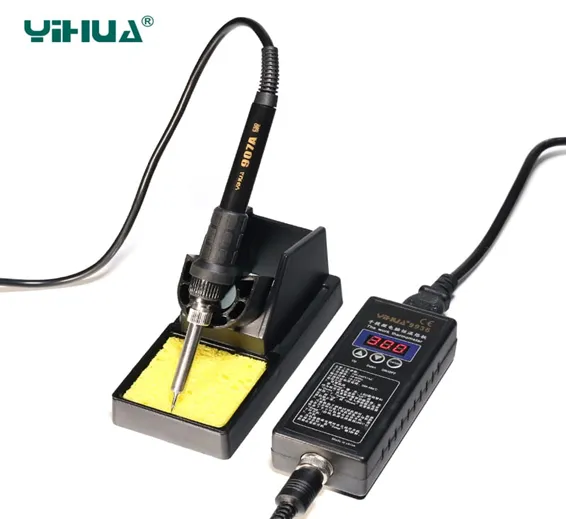

YIHUA-9936 portable soldering station is suitable for the de-soldering and maintenance work of chip components, plug-in components, cables, and integrated components of the circuit board, in the electronic products production line, mobile phone repair industry, and precision electronic repair industry. Rework station applies an integrated design with high-efficient switching power supply and power control system.
Features Of Soldering Rework Station:
- With the portable design, YIHUA-9936 portable soldering station weighs 500g or so and is small in size. It is convenient to take and operate.
- It applies an integrated design with high-efficient switching power supply and power control system.
- Controlled by the SAMSUNG microcomputer PID, it allows for fast warming.
- Only 15 seconds are required for the temperature rising from 30℃ to 300℃.
- Both temperature and standby time is adjustable through the NC control.
- The intelligent software design allows for automatic high temperature alarming, and automatic fault detection.
Specifications Of Temperature Controlled Soldering iron Station:
- Rated Voltage: AC 220V±10% 50Hz
- Output power: 10-40W
- Dielectric Withstand Voltage Test: AC1500V 0.4A 60S
- Overall Dimensions: 13.5*5.2*3.2CM
- Working Voltage: AC 26V±10% 50Hz
- Temperature Range: 200℃~480℃
- 1x Machine unit
- 1x Soldering iron handle (include iron tips and heater)
- 1x Iron holde
- 1x Clean sponge
- 1x Manua
- 1x Power Plug
