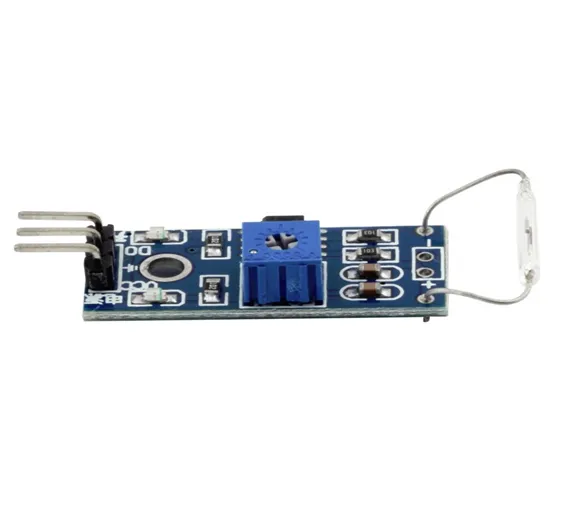

Reed Switch Sensor in Pakistan

Reed Switch Sensor in Pakistan

Condition: New
Availability: In Stock
Advance Payment Only

SKU: B 199,IMP20,Th5,KRT

Rs.180 Rs. 225

When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch 2 x 14 mm Magnetic Control Switch -Normally Open Contact-(Pack of 10 Pcs.) separate and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A


– Color: Blue

– Material: PCB – Open reed switch – Comparator output, clean signal, great waveform, and strong driving ability – More than 15mA – Working voltage: 3.3V~12V – Output format: digit switch output (0 and 1) – Fixed bolt hole for easy installation – Using a wide voltage LM393 comparator – Applies to PBX, photocopiers, washing machines, refrigerators, cameras, disinfection cabinets, doors, window magnetics, electromagnetic relays, electronic weighing, level meters, gas meters, water meters, etc.

Dimensions: 1.57 in x 0.55 in x 0.28 in (4.0 cm x 1.4 cm x 0.7 cm)

Weight: 0.18 oz (5 g)

Package includes:

1xReed Switch Sensor module
