Network Cable Tester Master BS 468 RJ45 RJ11
Best Online Shopping website for RJ45 RJ11 Network Cable Tester In Pakistan Here you get RJ45 RJ11 Network Cable Tester In Pakistan in reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

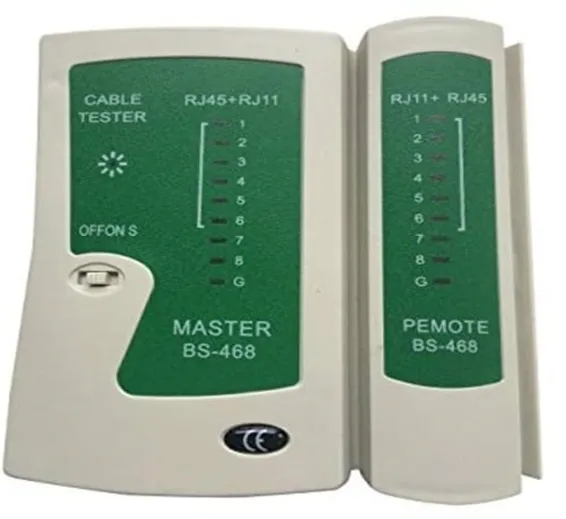

Master BS-468 RJ45 RJ11 Computer Network Cable Tester is easy to use and understandable. Master BS-468 RJ45 RJ11 Computer Network Cable Tester tests the functionality of network cables with twisted pair, straight and crossover wire configurations. Resolving network connectivity issues is often a mere process of elimination. This network cable tester helps determine whether or not a network cable is the source of the problem. To use, connect one end of the network cable to the "Master" controller and the other end to the "Remote". Turn the switch found on the Master controller to the on position to begin testing. If the network cable is working properly, the Master controller and the Remote will illuminate sequentially with green lights. When testing cables with RJ-11 connectors, lights 1 through 6 should illuminate. When testing cables with RJ-45 connectors, lights 1 through 8 should illuminate.
We have also UNI-T UT681, UNI-T UT681L, UNI-T UT681C etc.
Features of Master BS-468 RJ45 RJ11 Computer Network Cable Tester:
- Extremely easy to use and understand
- Network Cable Tester can judge wrong connection, short circuit and open circuit
- Build-in power switch for power saving
- RJ45 Network Cable Tester test correspondingly double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground
- 9 LED lights to indicate wiring connection on both remote and master unit
- Transmitter and receiver snap together for transport or patch cable testing
- Transmitter and receiver each have one RJ-45 jack and one BNC jack.
- Automatic efficient scan for the miss wiring, disorder cable, open and short circuit.
- Separable transmitter and receiver to test installed cabling or patch cables.
- Standard cable wiring diagrams are printed on the transmitter unit.
- Protective power switch for low power consumption.
- The high-quality soft leather case provides more secure protection.
Specifications of Master BS-468 RJ45 RJ11 Computer Network Cable Tester:
- Total Size: 105 x 100 x 28mm
- Testers: Main tester, Remote tester
- Main tester Size: 105*67*28mm
- Remote tester Size: 105*28*28mm
- Operate with one 9V battery ( Not Included )
- 1 x Master BS-468 RJ45 RJ11 Computer Network Cable Tester (Main tester+Remote tester)
- 1 X Manual
- 1 X PVC bag
