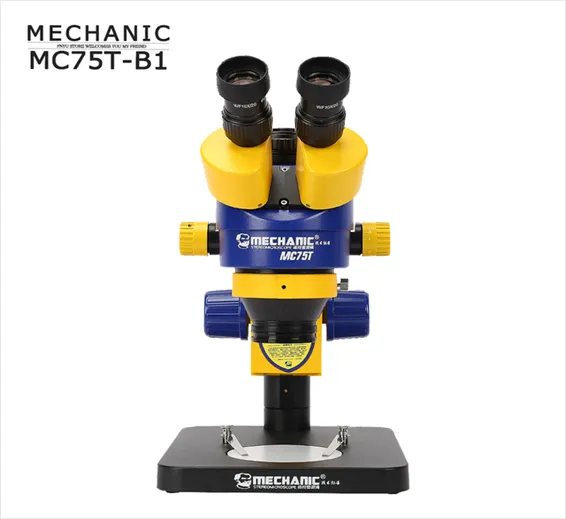

MECHANIC Microscope Trinocular Stereo MC75T-B1 0.7-4.5X Continuous Zoom PCB Mobile Phone Repair Inspection Platform
- Direct replacement: It is an original product and sold by direct replacement. Easy to install and disassemble, is a direct replacement for the old one.
- Light source: It is an excellent choice for professional equipment, with light source and low power consumption.
- White light source: It is a monocular stereo microscope with high reliability, excellent performance and long service life, and white light source.
- Computer tool kit: It is a good quality stereo inspection microscope for computer, car repair and so on.
SKU: TCBOX88
Rs.87000
Rs. 108750
Technical Specifications of MECHANIC Microscope MC75T-B1:
| Model No | MC75T-B1 |
| Package | Case |
| Application | Computer Tool Kit |
| Brand | MECHANIC |
| Origin | China |
| Name | MC75T-B1 Industrial Grade Trinocular Stereo Microscope |
| Magnification | Standard configuration 7X-45X |
| Eyepiece | Standard configuration 10X/20MM |
| Observation head | 45° tilt, 360° rotation |
| Interpupillary Distance | 54-76MM |
| Objective Lens | 0.7-4.5X continuous zoom |
| Objective Lens Zoom Ratio | 6.4:1 |
| Focusing Bracket | Lifting range 50MM |
| Base | B1 base |
| Lighting | White light source |
| Column Height | 280MM |
| Working Distance | Effective distance 100MM |
| Base Size | 195*256*20MM |
| Features | Can be connected to the display camera |
| 0.7-4.5X continuous zoom | YES |
| HD Coated Dust Mirror | YES |
| High-brightness LED lights | YES |
| Trinocular microscope | YES |
| 0.4X CTV interface | Can be connected to the display camera |
| Focusing knob | YES |
