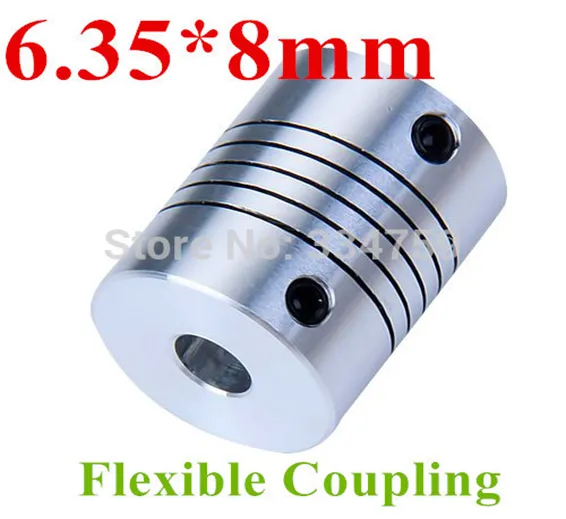

Flexible Coupling Shaft 6.35mmx8mm
CNC

Flexible Coupling Shaft 6.35mmx8mm

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: B414

Rs.850 Rs. 1063

6.35mmx8mm Flexible Coupling Shaft can connect your driving shaft with the driven shaft. 6.35mmx8mm Flexible Coupling Shaft, it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Aluminium Flexible Coupling. The first bore diameter is 6.35mm and the second bore diameter is 8mm also. It comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Features:

  1. Absorption of parallel, angular misalignments and shaft end-play by spring action.
  2. Corrosion resistance and High Durability.
  3. For little torque, shaft connect.
  4. One-piece construction with long-lasting performance.
  5. Low moment of inertia offering constant velocity.
  6. Widely used in drive systems for encoders, instrumentation, lead screws, small pumps, feed rollers and anywhere light to medium duty, torsionally flexible coupling is required.

Specifications:

  1. Material: Aluminum Alloy
  2. First bore diameter: 6.35mm
  3. Second bore diameter: 8mm
  4. Main Color: Silver Tone
  5. Torsional stiffness: Zero backlash

Buy Flexible Coupling Shaft 6.35mmx8mm at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of 6.35mmx8mm shaft flexible type of coupling. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes :

1 x Flexible Coupling Shaft 6.35mmx8mm
