Flexible Coupling Shaft 3x8mm

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B39

Rs.350 Rs. 438

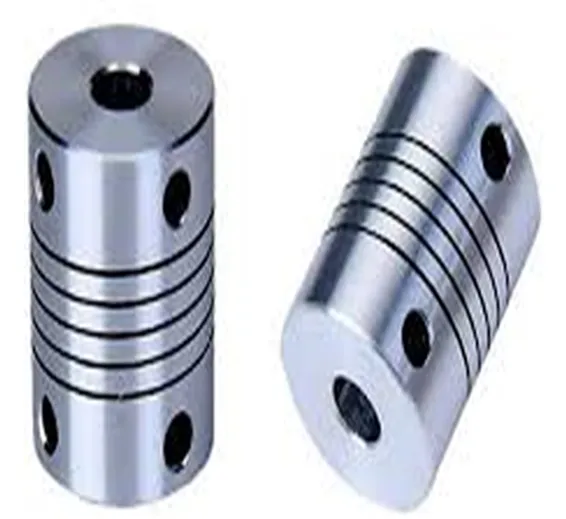

3x8mm Flexible Coupling Shaft can connect your driving shaft with the driven shaft. 3x8mm Flexible Coupling Shaft, it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Aluminium Flexible Coupling. This Flexible coupling with the outer diameter of 18mm and the length of 25mm is machined aluminum coupling. The first bore diameter is 5mm and the second bore diameter is 8mm also. It comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Features:

  1. Absorption of parallel, angular misalignments and shaft end-play by spring action.
  2. Corrosion resistance and High Durability.
  3. For little torque, shaft connect.
  4. One-piece construction with long-lasting performance.
  5. Low moment of inertia offering constant velocity.
  6. Widely used in drive systems for encoders, instrumentation, lead screws, small pumps, feed rollers and anywhere light to medium duty, torsionally flexible coupling is required.

Specifications:

  1. Material: Aluminum Alloy
  2. Outer Diameter: 18mm
  3. Length: 25mm
  4. First bore diameter: 3mm
  5. Second bore diameter: 8mm
  6. Main Color: Silver Tone
  7. Torsional stiffness: Zero backlash

Buy Flexible Coupling Shaft 3x8mm at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of 3x8mm shaft flexible type of coupling. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes :

1 x Flexible Coupling Shaft 3x8mm
