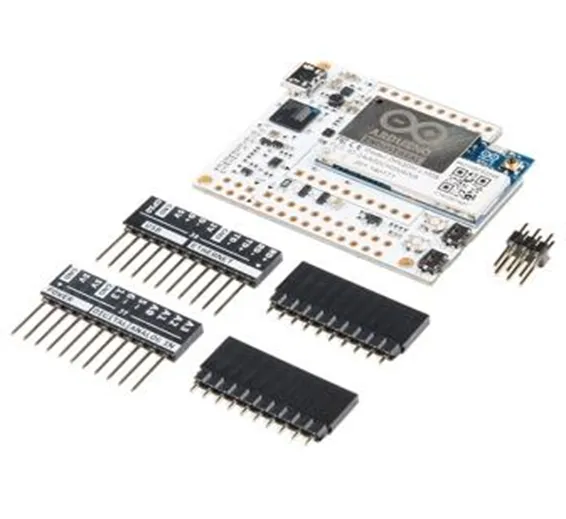

Arduino Industrial 101 Evaluation Board

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: RAWLIXArd

Rs.8000 Rs. 10000

The Arduino Industrial 101 Evaluation Board is an Evaluation board for Arduino 101 LGA module. The ATmega32u4 microcontroller is integrated in the baseboard. The module supports a Linux distribution based on OpenWRT named LininoOS.The Arduino Industrial 101 Evaluation Board has built-in Wi-Fi (IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4 GHz), 3 GPIOs (of which 2 can be used as PWM Outputs), 4 Analog Inputs, 1 USB, 1 Ethernet signal on pin headers and a built-in DC/DC converter.

Specifications

  1. Processor: Atheros AR9331
  2. Operating Voltage: 3.3V
  3. Flash Memory: 16 MB
  4. RAM: 64 MB DDR2
  5. Clock Speed: 400 MHz
  6. WiFi: 802.11 b/g/n 2.4 GHz
  7. Ethernet: 802.3 10/100 Mbit/s (Exported on headers)
  8. USB: 2.0 Host (Exported on headers) Arduino Microcontroller
  9. Microcontroller: ATmega32u4
  10. Operating Voltage: 5V
  11. SRAM: 2.5 KB
  12. Clock Speed: 16 MHz
  13. Analog I/O Pins: 12 (4 exported on header)
  14. EEPROM: 1 KB
  15. DC Current per I/O Pins: 40 mA

Device characteristics

  1. Input Voltage: 5 V
  2. Digital I/O Pins: 20 (7 exported on header)
  3. PWM Output: 7 ( 2 exported on header)
  4. Power Consumption: 130 mA
  5. PCB Size: 42 x 51 mm
  6. GPIO: 3 Exported on headers
  7. DogOLED Support: 1 Exported on headers

Datasheet

  1. 1 X Arduino Industrial 101 Evaluation Board
