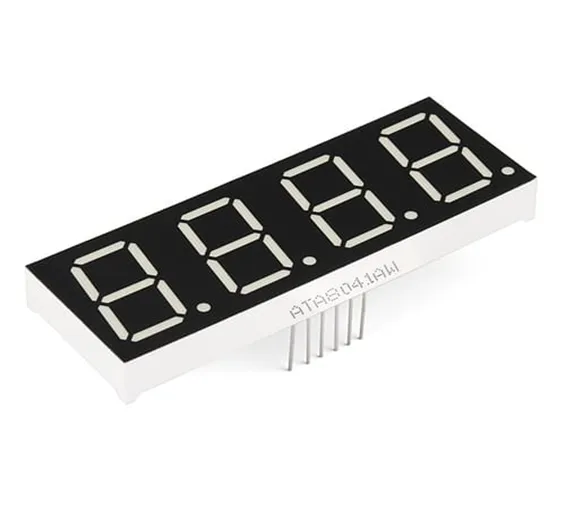

4 Digit 7 Segment Red LED Display
7 Segment Display

4 Digit 7 Segment Red LED Display

Condition: New
Availability: In Stock
Advance Payment Only
Share:

SKU: SB63,TMD30,Th10,KRT

Rs.60 Rs. 75

4 Digit 7 Segment Red LED Display is ideally suited to adding a display to your project. 4 Digit 7 Segment Red LED Display is compatible with prototyping boards such as the MB-102 which feature standard sockets with a pin pitch of 2.54mm. This module lets you display your information in a bold and bright way, taking your project to new levels of display, writing all manners of numbers and words with numbers from 0-9, A-F, and –. This module has Red LEDs that are powered via a connection to 3.3 – 5V. The display operates by being supplied with VCC to a particular segment pin. Following which applying GND to both a particular D pin will cause a specific segment on a specific digit to illuminate. The pins are suited to standard sockets with a pin pitch of 2.54mm.

Features of 4 Digit 7 Segment Red LED Display:

  • SMA420564 Chipset
  • 4 Red 7-Segment digits with decimal points
  • Parallel control
  • 0.56″(inch) Height digits
  • Common cathode
  • Suitable for use with 220 Ohm resistors
  • Designed to be compatible with standard 2.54mm sockets

Specifications of 4 Digit 7 Segment Red LED Display:

  1. Pin Number: 12 pins
  2. Digit Number: 4 digits
  3. Kind of module: LED Display
  4. Supply voltage: 3.3...5V DC
  5. Size: 50 x 19 x 15mm (l x w x h)

Package Includes:

1 x 4 Digit 7 Segment Red LED Display
