7 Segment Display

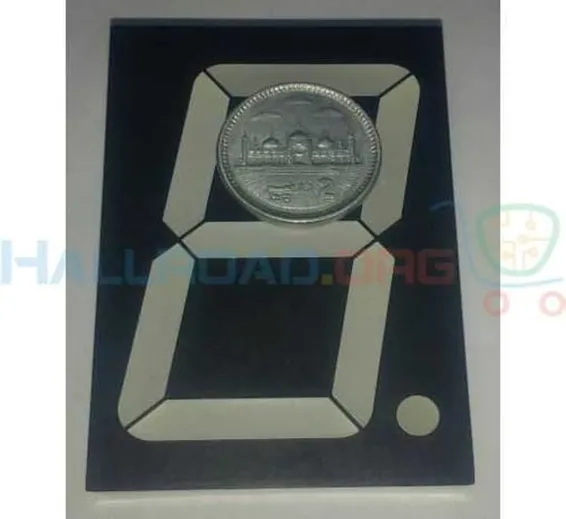

70mm Common Anode 7 Segment LED Display

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B419,LS20,TH5,KRT

Rs.180 Rs. 225

70mm Common Anode 7 Segment LED Display is an electronic device that contains an array of 8 individual LEDs. 70mm Common Anode 7 Segment LED Display, each of the 8 segments that make up the display can be either be on the state or the off state. Depending on which LEDs are lit determines the character which is displayed on the LED. The LED can be made to show a wide range of characters, including all numerical digits from 0-9. The versatility of a 7 segment display lies in the fact that it can be a numerical value indicator. LED displays are used in all types of products, including alarm clocks, scoreboards, and all other signs showing character output.

We have also different displays like 3 digit cathode, 3 digit anode, 4 digit cathode, 8 digit cathode etc.

Features of 70mm Common Anode 7 Segment LED Display:

  • Electronic display device for displaying decimal numerals
  • Low current operation
  • Excellent character appearance
  • Highlight output
  • Easy mounting on PC boards or sockets
  • Mechanically rugged

Specifications of 70mm Common Anode 7 Segment LED Display:

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 50 µA
  • Forward Current (If): 25mA
  • Peak Forward Current (Ifp): 100 mA
  • Power Dissipation (P): 100 mW per Segment
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature: 260°C
  • Height: 70mm
  • Width: 48mm

Package Includes:

1 x 70mm Common Anode 7 Segment LED Display

Best Online Shopping website for 70mm Anode 7 Segment LED Display In Pakistan Here you get 70mm 7 Segment LED Display In Pakistan in reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
