10 segment LED bar graph

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SB102,D132,TMD100,Th50,KRT

Rs.30 Rs. 38

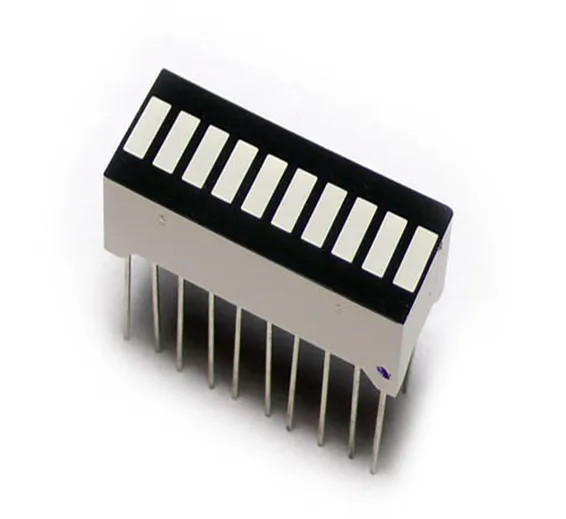

This is a segment LED bar without a control chip. It has 10 segment LEDs, including 8 green, 1 yellow and 1 red. It is compatible with the breadboard and can work with Arduino by adding some current limiting resistors. Since it has 10 pins, it may be complex to control. If you would like a modular segment LED bar,

LEDs color: only one



Specification

SYMBOL

PARAMETER

RED

UNIT

PAD

Power Dissipation Per Segment

100

mw

VR

Reverse Voltage Per Segment

5

V

IAF

Continuous Forward Current Per Segment

20

mA

IPF

Peak Forward Current Per Segment(Duty-0.1,1KHz)

90

mA

---

Derating Linear From 25°C Per Segment

0.5

mA/°C

TOPr

Operating Temperature Range

-30°C to 80°C

Tstg

Storage Temperature Range

-30°C to 85°C


Solder Temperature1/16 inch Below Seating Plane 3 Seconds at 250°C
