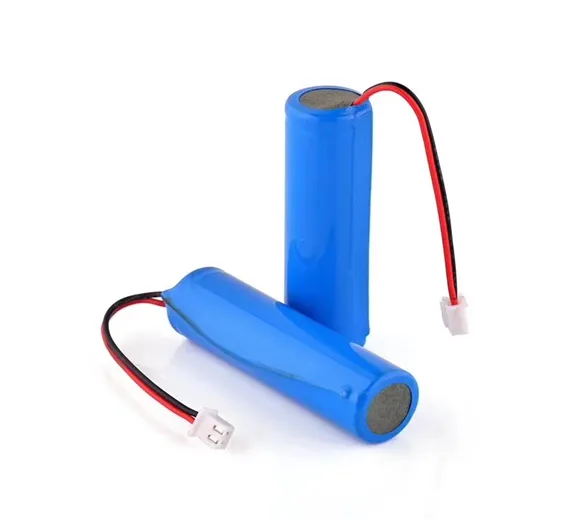

3.7v 18650 Battery With Wire, JST Connector And BMS Protection

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B336,D,LS5,Th2,KRT3

Rs.200 Rs. 250

This is a 18650 battery with wire, JST connector and pre-installed Battery Management and protection board. You can directly use this 18650 battery to give power to any device which needs 3.7v or under.

Need a big battery for your project? This lithium-ion battery contains a 2200mAh and a protection circuit that provides over-voltage, under-voltage, and over-current protection. Yet, it is slim and easy to fit into many project cases. This cell can provide 2C of peak current (4400mA). Note that these batteries are not designed to sustain such high loads, we suggest keeping any constant current draw under about 0.5C (1 Amp). The battery comes with color-coded wires, but to use with our chargers you'll likely want to connect a JST 2-pin cable (included!). Because they have a genuine JST connector, not a knock-off, the cable won't snag or get stuck in a matching JST jack, they click in and out smoothly. The cables are rated for 2A so if you use them keep that in mind.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 2.5V. However, even with this protection, it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 0.5C (1 Amp) or less.

Like most lithium-ion packs, the batteries we sell do not have thermistors built-in. This is why we suggest charging at 1/2C or even less - 1A max in this case. Of course, you can charge at a lower rate - it'll just take a little longer to fill up.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush or puncture. Never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. As with all Lithium-ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies

Specifications and Features of 18650 Battery:

  1. Voltage =3.7v
  2. Current Capacity = 2200mAh
  3. Connector Type= JS2.54mm
  4. Wire length= 4 Inch
  5. Builtin Under Voltage Protection
  6. Builtin Over Voltage Protection
  7. Builtin Over Charge Protection
  8. Builtin Over Current Protection
  9. Plug and play operation
