Sensors

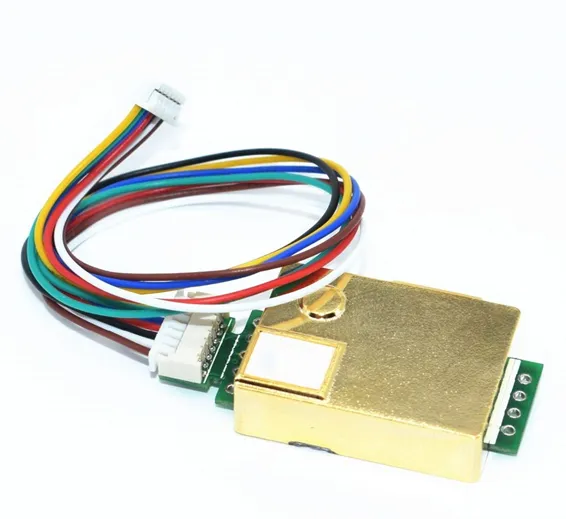

10000ppm MH-Z19B Co2 Sensor Module in Pakistan

Condition: New
Availability: Out Of Stock
Share:     Faceook Twitter

SKU: B215,IMP,5Th2,KRT

Rs.4300 Rs. 5375

This 10000ppm MH-Z19B co2 Sensor detects carbon dioxide Co2. 10000ppm MH-Z19B CO2 sensor has high sensitivity, high resolution, and low power consumption. MH-Z19 carbon dioxide gas sensor (hereinafter referred to as the sensor) is a generic type, small sensors, using nondispersive infrared (NDIR) principle to detect the air in the presence of CO2, with good selectivity and no oxygen dependence and long service life. Built-in temperature compensation, with digital output and waveform output, easy to use. The sensor is a high-performance sensor that is combined with the mature infrared absorption gas detection technology and the precise optical path design and the excellent circuit design. Sensor characteristics

  1. High sensitivity, high resolution, low power consumption
  2. Provide UART, PWM waveform, such as a variety of output mode
  3. Temperature compensation, excellent linear output
  4. Excellent stability
  5. Long service life Anti-water vapor interference, not poisoning Main application Can be widely used in HVAC refrigeration and indoor air quality monitoring.

    Features:

    1. High sensitivity, high resolution, low power consumption
    2. Provide UART, PWM waveform and other output methods
    3. Temperature compensation, excellent linear output
    4. Excellent stability
    5. Long life
    6. Water vapor interference, not poisoning

    Specifications:

    • Product Model: MH-Z19B
    • Detection gas: carbon dioxide
    • Operating voltage: 4.5 ~ 5.5V DC
    • Average current: <60mA ( 5V supply)
    • Peak current: 150 mA (5V supply)
    • Interface level: 3.3V
    • Measurement range: 0 ~ 1% VOL range optional
    • Output signals: UART, PWM, analog output (default 0.4 ~ 2V)
    • Warm-up time: 3min
    • Response time: T90 <120s
    • Operating temperature: 0 ~ 50 ℃
    • Operating humidity: 0 ~ 95% RH (non-condensing)
    • Board size: 32.17x19.7x5.25mm
    • Weight: 5 g
    • Life expectancy: > 5 years

    Package Includes:

    1 x MH-Z19B Co2 Sensor Module
