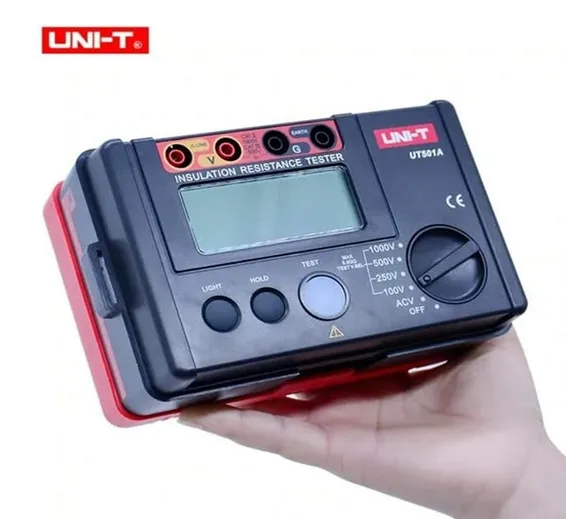

UNI T UT501A Insulation Resistance Tester
Other Meters

UNI T UT501A Insulation Resistance Tester

Condition: New
Brand: UNI-T
Availability: In Stock
Advance Payment Only
Share:

UT500 (UT501A, UT502A) series insulation testers are used to measure the insulation resistance of electrical  equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal  tools for ensuring transformers, genera-tors, high voltage motors, power capacitors, power cbles, arresters and other electrical equipment that can oprate in a safe and accurate manner. It is used for insulation resistance measurement for insulation materials and various kinds of electric equipments such as transformer, electric machines, cables, switches, electrical appliance, a ideal tool for electric maintenance, testing and inspection.

SKU: TMD1,Th6,KRT

Ask Price

UNI T Insulation Resistance Tester UT501A is used to measure the insulation resistance of electrical equipment and household appliances. This UT-501A earth insulation resistance meter is done by measuring the insulation resistance between electrical circuits or between circuits and ground. This megohmmeter voltmeter can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). This insulation megger ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters and other electrical equipment that can operate in a safe and accurate manner.

Features Of UNI-T UT501A 1000V Insulation Resistance Ground Tester MegOhmmeter Volt Meter:

  • Measure insulation resistance across a wide range
  • Test voltages of 100V, 250V, 500V and 1000V
  • Large size LCD screen with backlight (can be switched on/off)
  • 2000 count display
  • Simple-to-use
  • Large test initiate button
  • Ports for test leads
  • Data hold function
  • Various indicators available on the device

Specifications Of UNI-T UT501A Insulation Earth Ground Resistance Meter Megger Voltmeter:

  1. Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
  2. 100V: 0.00MΩ~100MΩ ±(3%+5)
  3. 250V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  4. 500V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  5. 1000V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
  6. Load Current: 50V(R=50KΩ) 1mA 0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%; 500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
  7. Short Circuit Current: <2mA
  8. AC Voltage (V): 30V~750V ±(2%+3)
  9. Display Count: 2000
  10. Automatic measurement: Yes
  11. Low Battery Indication: Yes
  12. LCD Backlight: Yes
  13. Alarm Light Display: Yes
  14. Alarm Buzzer: Yes
  15. High Voltage Indication: Yes
  16. Over Load Indication: Yes
  17. Auto Discharge: Yes
  18. Test Voltage Vice Display: Yes
  19. 10M? Internal Resistance Test: Yes
  20. Power: 6 x 1.5V Alkaline batteries (Not included)
  21. LCD Size: 65mm x 27mm
  22. Product Net Weight: 500 g
  23. Product Size: 150mm x 100mm x 71mm
  24. Product Color: Red and Grey
  25. Package Size: 18.5 x 15 x 9cm / 7.3 x 5.9 x 3.7in
  26. Package Weight: 700g / 1.5lb

Package Includes:

  • 1 x Megohmmeter UNI-T UT501A
  • 2 x Test leads
  • 2 x Test probes
  • 1 x Alligator clip
  • 1 x Carrying bag
  • 1 x Strap
  • 1 x User manual
