SIM800C GSM GPRS Module For Arduino In Pakistan

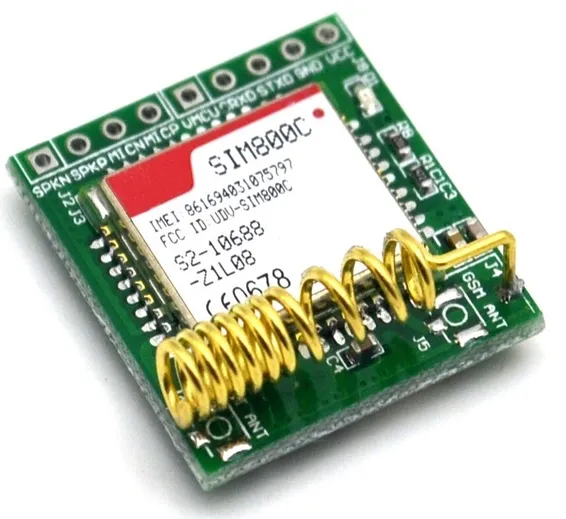

Smallest SIM800C GPRS GSM Module MicroSIM Card Core Board Quad-band TTL Serial Port (Compatible SIM800L SIM900A)

General features:

1. GPRS multi-slot class 12/10
2. GPRS mobile station class B
3. Compliant to GSM phase 2/2+
4. Class 4 (2 W @ 850/900 MHz)
5. Class 1 (1 W @ 1800/1900MHz)
6. FM: 76~109MHz worldwide bands with 50KHz tuning step
7. Dimensions: 17.6*15.7*2.3 mm
8. Weight: 1.3g
9. Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
10. Supply voltage range 3.4 ~ 4.4V
11. Low power consumption
12. Operation temperature:-40°C~85°C

Specifications for GPRS Data:

1. PBCCH support
2. Coding schemes CS 1, 2, 3, 4
3. PPP-stack
4. CSD up to 14.4 kbps
5. USSD
6. Specifications for SMS via GSM/GPRS
7. Point to point MO and MT
8. SMS cell broadcast
9. Text and PDU mode

Software features:

1. 0710 MUX protocol
2. Embedded TCP/UDP protocol
3. FTP/HTTP
4. MMS
5. E-MAIL
6. DTMF
7. Jamming Detection
8. Specifications for voice
10. Half rate (HR)
12. Full rate (FR)
13. Enhanced Full rate (EFR)
14. AMR
16. Half rate (HR)
18. Full rate (FR)
19. Hands-free operation
20. (Echo suppression)

Sim800C documentation please see on this page.
