GPS Antenna – External Active Antenna – 3-5V 28dB 5 Meter SMA

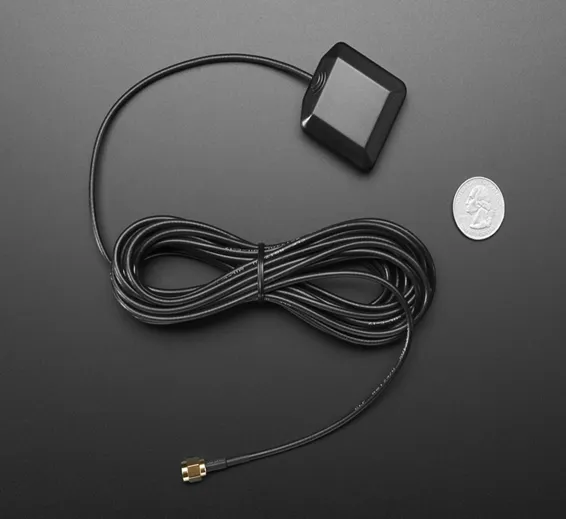

GPS Antenna – External Active Antenna – 3-5V 28dB 5 Meter SMA: Give your Ultimate GPS V3 a boost with this external active antenna. This GPS antenna draws about 10mA and will give you an additional 28 dB of gain. It’s got a 5-meter long cable so it will easily reach wherever you need it to. The antenna is magnetic so it will stick to the top of a car or truck (or any other steel structure)Comes with a standard SMA connector on the end. Ceramic Path

Specification:

1. Operating Frequency T1 1575.42±1.023 MHz
2. Output Impedance 50 ohms
3. Polarization R.H.C.P.
4. Bandwidth 10 MHz min. @S11<=-10 dB
5. Gain at 10° elevation -1 dBic Typ.
6. Axial Ratio 3.0 dB Typ.
