RepRap Rod Holder Shaft Guide Mill 3D Printer Linear Rail Support CNC SK8 8mm
SKU: D 206,B21,IMP100,Th50,KRT,N71
Shaft Guide Mill RepRap Rod Holder 3D Printer Linear Rail Support CNC SK8 8mm in Pakistan

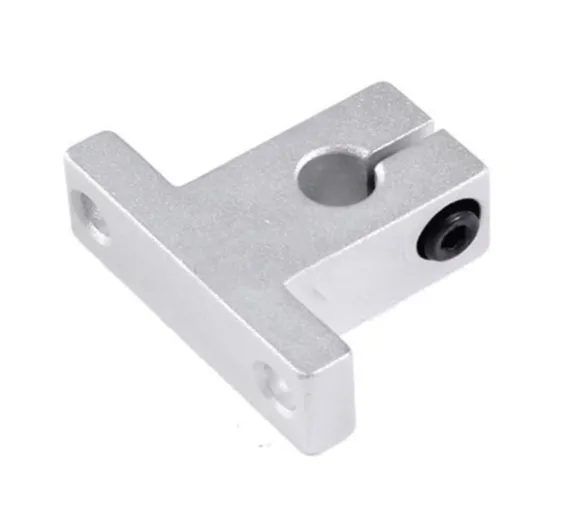

Usable with any 8mm linear guide, you can simply slide the rail through, then tighten the clamp screw at the top to fix it in place. Then use up to 6mm diameter bolts to attach them. If you need to disassemble or otherwise repair your machine. It`s easy to open up the clamp and remove the rail. It has high friction resistance can get high precision rotating in the smooth movement.
Shaft Guide Mill RepRap Rod Holder 3D Printer Linear Rail Support CNC SK8 8mm
|
Unit Designation |
dr |
Main Dimensions (mm) |
Locking bolts |
Mounting bolts |
Weight (kg) |
||||||||
|
h |
E |
W |
L |
F |
G |
P |
B |
S |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SK8 |
8 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5.5 |
M4 |
M5 |
0.024 |
|
SK10 |
10 |
20 |
21 |
42 |
14 |
32.8 |
6 |
18 |
32 |
5.5 |
M4 |
M5 |
0.024 |
|
SK12 |
12 |
23 |
21 |
42 |
14 |
37.5 |
6 |
20 |
32 |
5.5 |
M4 |
M5 |
0.030 |
|
SK13 |
13 |
23 |
21 |
42 |
14 |
37.5 |
6 |
20 |
32 |
5.5 |
M4 |
M5 |
0.030 |
|
SK16 |
16 |
27 |
24 |
48 |
16 |
44 |
8 |
25 |
38 |
5.5 |
M4 |
M5 |
0.040 |
|
SK20 |
20 |
31 |
30 |
60 |
20 |
51 |
10 |
30 |
45 |
6.6 |
M5 |
M6 |
0.070 |
|
SK25 |
25 |
35 |
35 |
70 |
24 |
60 |
12 |
38 |
56 |
6.6 |
M6 |
M6 |
0.130 |
|
SK30 |
30 |
42 |
42 |
84 |
28 |
70 |
12 |
44 |
64 |
9 |
M6 |
MS |
0.180 |
|
SK35 |
35 |
50 |
49 |
98 |
32 |
82 |
15 |
50 |
74 |
11 |
M8 |
M10 |
0.270 |
|
SK40 |
40 |
60 |
57 |
114 |
36 |
96 |
15 |
60 |
90 |
11 |
M8 |
M10 |
0.420 |
|
SK50 |
50 |
70 |
63 |
126 |
40 |
120 |
18 |
74 |
100 |
14 |
M12 |
M12 |
0.750 |
|
SK60 |
60 |
80 |
74 |
148 |
45 |
136 |
18 |
90 |
120 |
14 |
M12 |
M12 |
1.100 |
