CNC

Flexible Coupling Shaft 10mmx10mm

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: B86

Ask Price

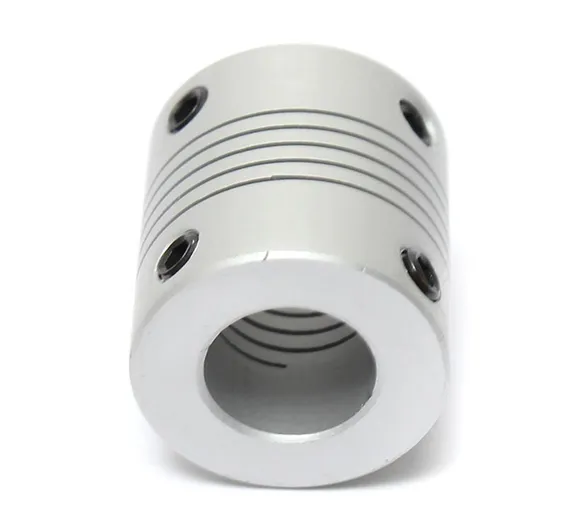

10mmx10mm Flexible Coupling Shaft can connect your driving shaft with the driven shaft. 10mmx10mmFlexible Coupling Shaft, it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Aluminium Flexible Coupling. The first bore diameter is 10mm and the second bore diameter is 10mm also. It comes with the spiral cut in the middle along its length which makes it flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. Such couplings are also known as Beam coupling, helical coupling, Flexible coupling.

Features:

  1. Absorption of parallel, angular misalignments and shaft end-play by spring action.
  2. Corrosion resistance and High Durability.
  3. For little torque, shaft connect.
  4. One-piece construction with long-lasting performance.
  5. Low moment of inertia offering constant velocity.
  6. Widely used in drive systems for encoders, instrumentation, lead screws, small pumps, feed rollers and anywhere light to medium duty, torsionally flexible coupling is required.

Specifications:

  1. Material: Aluminum Alloy
  2. First bore diameter: 10mm
  3. Second bore diameter: 10mm
  4. Main Color: Silver Tone
  5. Torsional stiffness: Zero backlash

Buy Flexible Coupling Shaft10mmx10mm at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of 10mmx10mmshaft flexible type of coupling. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes :

1 x Flexible Coupling Shaft10mmx10mm
