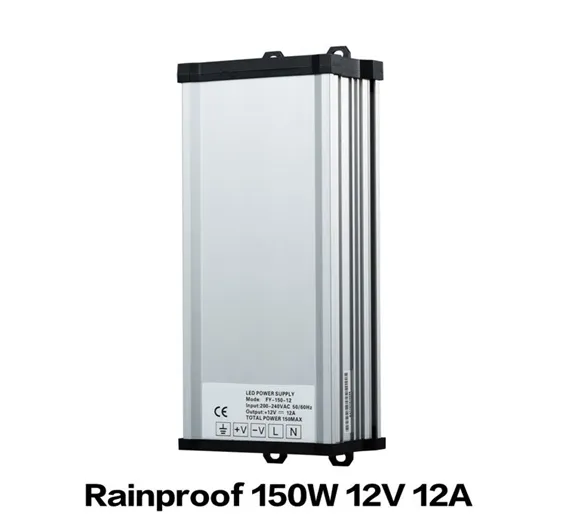

Outdoor Transformer 12V 150W For LED Landscape Lighting

The Outdoor LED 12v dc power supply/Transformers are the heart of your lighting system and should not be overlooked. Rainproof Outdoor 12v Transformer For Landscape Lights can be used to connect large amounts of LED Lights, LED Light Ribbons, RGB LED lighting and any other 12VDC Constant Voltage LED Lighting products, special for

landscape lighting

. Landscape lighting is needed in many residential and commercial areas. Whether it just be small security lights, pathway markers, or just added accent lighting around the grounds. Low voltage

landscape lighting

uses a transformer plugged into a standard wall outlet to convert ordinary household power from 110 volts down to 12 volts. To determine the size of the transformer needed, add up the total number of watts for each light fixture in your lighting project. Then, add another 10% for cables and connections that add hidden watts to your system.

Features Of 12V landscape transformer:

1. With short circuit protection, overload protection, and stable output voltage
2. 1. Weatherproof aluminum shell
   2. Built-in EMI Filter
   3. High efficiency and low temperature
   4. 100% load tested
   5. Direct wire screw terminals, single rail output, three sets of output terminals.
   6. Mounting tabs on top with two holes allow easy mounting
   7. Automatic cutoff when overloaded with auto-reset
   8. CE, ROHS, and EMC approved.

   Specifications Of 12v 150w low voltage Outdoor transformer:

3. 1. Weatherproof aluminum shell
   2. Protection Rating: IP53
   3. Input Power: 200/240VAC (can also be configured for 110/120V operation)
   4. Output Current: 12 Amps of power at 12 volts DC
   5. Output Power: 150 watts
   6. Connection Type: Direct wire screw terminal block
   7. Power Input Terminals: 3 (Ground, N-Neutral, L-Load/Hot)
   8. Power Output Terminals: 2 (+,-) [single rail]

   Recommended Uses:

   1. All types of strip lights
   2. led lighting
   3. led display
   4. landscape lighting
   5. CCTV security cameras

   Installation:

   1. MUST BE MOUNTED VERTICALLY TO MAINTAIN RAIN PROOFING
   2. 16 AWG copper wire is recommended for the AC input
   3. The DC wire needs to be appropriately sized for the load

   Package Include:

   1x Outdoor Transformer 12V DC 150w For LED Landscape Lighting

   Buy Rainproof Outdoor Transformer 12V 150W For LED Landscape Lighting at Pakistan's Best Online Store at cheap price. Here you get a wide range of outdoor Transformers. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all Over Pakistan

   • SKU: RAWLIXOut
   • /
   • Category: Car Electronics
   • /
   • Tags: Outdoor Transformer 12V 150W For LED Landscape Lighting
