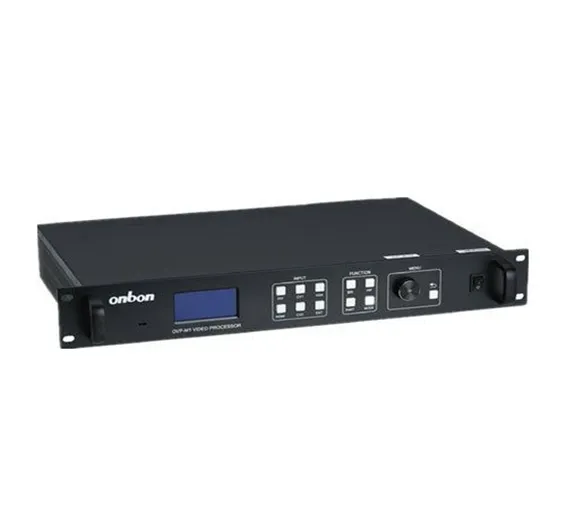

Onbon OVP-M1 OVP+M1+VS full color LED screen video Processor in pakistan

Onbon OVP-Mq1 User Manual:

Onbon OVP-M1 OVP+M1+VS full color LED screen video Processor comes with 2 PCS sender card in pakistan

Note:

Onbon OVP-M1 Built in 2PCS BX sender card,it can work with BX receving card directly:

Technical Parameters: Input indicator port Quantity Resolution specifications CV 2 PAL/NTSC VGA 1 VESA standard DVI 1 VESA standard HDMI 1 CEA-861 standard, HDMI1.3 Output indicator port Quantity Resolution specifications Ethernet 2 Up to 2.6 million pixels DVI 2 800×600@60Hz , 1024×768@60Hz , 1280×1024@60Hz , 1366×768@60Hz , 1440×900@60Hz , 1600×1200@60Hz ,

1920×1080p@60Hz , 1920×1200@60Hz2048×1152@60Hz , 2304×1024@60Hz , 2560×816@60Hz , 3840×630@60Hz ,

1080×1920@60Hz , 1200×1600@60Hz , 1536×1536@60Hz

Custom output resolution:

Up to 3840 horizontal pixels , 1920 vertical pixels , and 24-60 Hz field frequency

LED with area Total control points 2.6 million pixels, such as: 2560*1024 @60Hz Horizontal maximum pixel 3840 Vertical maximum pixel 1920 Whole specification Input voltage 100-240V~ 50/60Hz The maximum power consumption of the whole machine ≤20W Operating temperature -20-55 °C environment humidity 15-85% Dimensions 482.6mm×300mm×66.6mm
