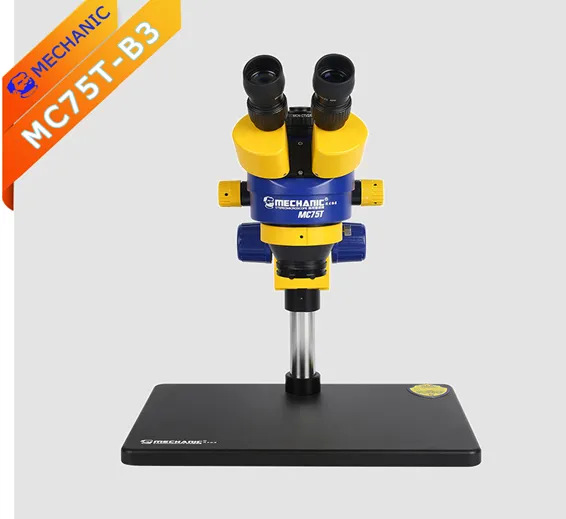

MECHANIC Microscope MC75T-B3 Trinocular HD PCB Mobile Phone Rework Assembly Industrial Grade 3 Eyes Stereo Detect Repair Tool
- Application: teaching demonstration, PCB, electronics, digital, mobile phone processing and repair, parts assembly, electronic component testing
- Eyepiece: 0.4X CTV HD electronic eyepiece
- Objective: 0.7X-4.5X
- Auxiliary objective lens: 0.3X/287MM, 0.5X/165MM, 0.7X/120MM, 1.5X/45MM, 2X/30MM
- Focusing bracket: the tightness of the focusing handwheel is adjustable, and the lifting range is 50MM
- Observation head: binocular observation head is inclined at 45 degrees, pupil distance adjustment range is 54MM-76MM, binocular vision degree is adjustable
- LED light source: high-brightness cold white light source, stepless brightness free adjustment
SKU: TCBOX65
Rs.85000
Rs. 106250
Technical Specifications of MECHANIC Microscope MC75T-B3
| Features | High Definition |
| Model | MC75T-B3 |
| Theory | Stereo Microscope |
| Material | Aluminum |
| Drawtube | Trinocular |
| Magnification Ratio | 500X & Under |
| Brand | Mechanic |
| Origin | China |
| Size | 260*375*285MM |
| Magnification | Standard 7X-45X (optional 2.1X-180X) |
| Eyepiece | 0.4X CTV HD electronic eyepiece |
| Objective | 0.7X-4.5X |
| Working Distance | Effective distance 100MM |
| Focusing Bracket | The lifting range is 50MM |
| Led Light Source | High-brightness cold white light source |
| Base Size | 260*375*20MM |
| Base Material | Aluminum alloy |
| Multi-angle use | High-brightness LED lights |
| HD Coated Dust Mirror | 0.7X-4.5X continuous zoom |
| 0.4X CTV Interface | High-field wide-angle eyepiece |
| HD Optical Objective Lense | Can be connected to an external display device |
| Application 1 | Teaching demonstration |
| Application 2 | PCB, electronics, digital, mobile phone processing and repair |
| Application 3 | Parts assembly |
| Application 4 | Electronic component testing |
