Elitech Humidity Controllers DHC-100+ series In Pakistan Original
Temperature & Others

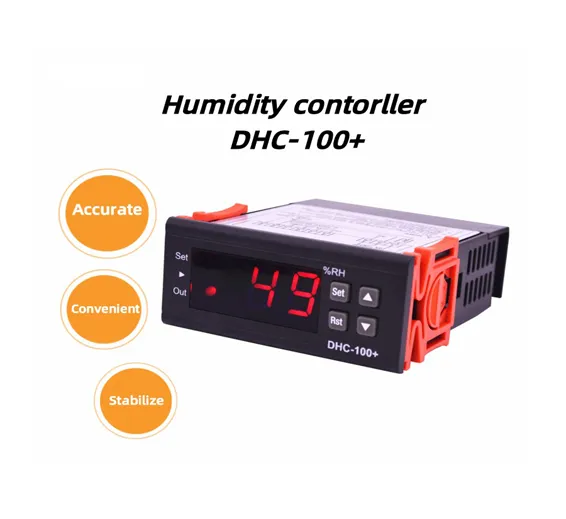

Elitech Humidity Controllers DHC-100+ series In Pakistan Original

Condition: New
Brand: ELITECH
Availability: In Stock
Share:

SKU: 638307926998939267

Rs.12000 Rs. 15000

DHC-100 adopts the integrated circuit type humidity sensor, with all the advantages of high sensitivity, fast response, and excellent coherence, mainly used to measure, display and control the humidity.

Elitech Humidity Controllers DHC-100+ Specifications:

  • Model number DHC-100+ series
  • Supply voltage 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc
  • Humidity measuring range 0%-99%RH
  • Humidity control range 10%-99%RH
  • Resolution 1%RH
  • Humidity accuracy 25℃: ±(5%RH+0.5digit)
  • 10-40℃ 0%-59%RH: ±(6%RH+0.5digit)
  • 10-40℃ 59%-99%RH: ±(8%RH+0.5digit)
  • Input types HTG3515CH temperature humidity sensor, length is 2m (include the probe)
  • Sensor Stability ±0.5%RH/year
  • Output types One SPDT electromagnetic relay
  • Relay contact rating 10A at 250VAC, Max.single-phase load is 0.5HP/220VAC
  • Power consumption Less than 3W
  • Front panel IP rating IP54
  • Insulation resistance 500M ohm min
  • Withstand voltage 2KV 50Hz for 1min, no breakdown and flashover phenomenon
  • Vibration resistance (10-5-10) Hz, 2G, 3min vibration, work normally
  • Operating temperature 0 to 60 ℃
  • Operating humidity 20-85% RH max, non-condensing
  • Storage temperature -30 to 75 ℃

Elitech Humidity Controllers DHC-100+ Features:

  1. Humidification, dehumidification mode optional.
  2. Adopt an integrated circuit humidity sensor, with high sensitivity, fast response, good consistency, and so on.
  3. Keypad lock function.
  4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time.
  5. Alias name DHC-100+ hygrostat

Package Include:

  • 1x Humidity Controllers DHC-100+ series
