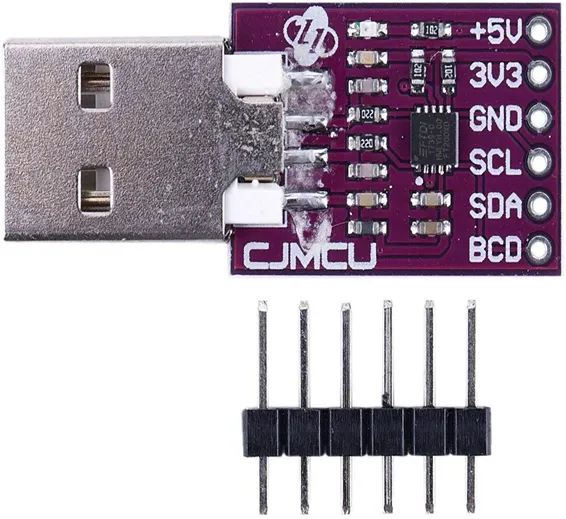

CJMCU-200 FT200XD USB To I2C Module Full Speed USB To I2C Bridge

CJMCU-200 FT200XD USB To I2C Module Full Speed USB To I2C Bridge Overview:

Features

The FT200XD is a USB to I2C interface with the following advanced features:

1. Single chip USB to I2C interface
2. Up to 3.4MHz, high speed mode, I2C supported
3. Entire USB protocol handled on the chip, no USB specific firmware programming required
4. Fully integrated 2048 byte multi-time-programmable(MTP) memory storing device descriptors and CBUS I/O configuration
5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA
6. 512 byte receive buffer and 512 byte transmit
7. USB Power Configurations, supports bus-powered, self-powered and bus-powered with power switching
8. Integrated +3.3V level converter for USB I/O
9. True 3.3VCMOS drive output and TTL input, Operates down to 1V8with external pull-ups, tolerant of 5V input
10. Configurable I/O pin output drive strength, 4mA(min) and 16mA(max)
11. Integrated power-on-reset circuit
12. Fully integrated AVCC supply filtering - no external filtering required
13. +5V Single-Supply Operation
14. Internal 3V3/1V8 LDO regulators

Package Includes:

• 1 x CJMCU-200 FT200XD USB To I2C Module
