Capacitor, Resistor, Inductor

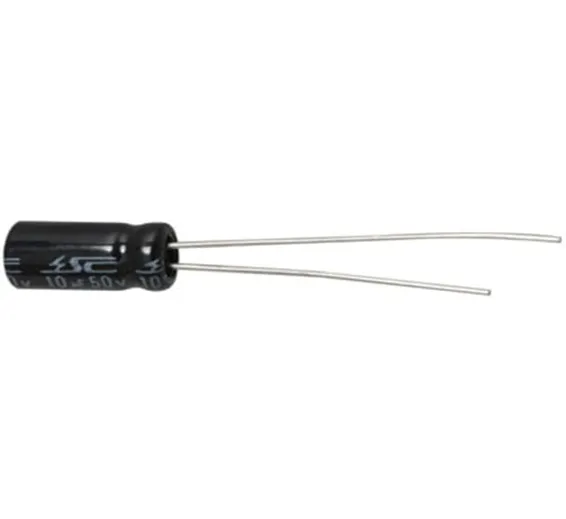

Aluminum 10uF 50V Electrolytic Capacitor

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: SB69, TMD200,Th50,KRT

Rs.5 Rs. 6

Aluminum 10uF 50V Electrolytic Capacitor is polarized components due to asymmetrical construction, 10uF 50V Electrolytic Capacitor must be operated with a higher voltage (ie, more positive) on the anode than on the cathode at all times. For this reason, the anode terminal is marked with a plus sign and the cathode with a minus sign. Applying a reverse polarity voltage, or a voltage exceeding the maximum rated working voltage of as little as 1 or 1.5 volts, can destroy the dielectric and thus the capacitor. The failure of electrolytic capacitors can be hazardous, resulting in an explosion or fire. Bipolar electrolytic capacitors which may be operated with either polarity are also made, using special constructions with two anodes connected in series.

Features of Aluminum 10uF 50V Electrolytic Capacitor:

  1. RoHS compliant
  2. Load life 2000 hours at 85°C
  3. Safety vent construction design

Specifications of Aluminum 10uF 50V Electrolytic Capacitor:

Capacitance (uF) 10 Voltage (VDC) 50 Tolerance (%) 20 Size 5 x 11 x 2 mm Construction Radial Maximum Operating Temperature 85 Mounting Through Hole Type Electrolytic Capacitance (pF) 10000000 Operating Tempera -40 °C +105°C

Package Includes:

1 x Aluminum 10uF 50V Electrolytic Capacitor
