74hc151 IC in Pakistan

Condition: New
Availability: In Stock
Share:     Faceook Twitter

SKU: DBS142,TMD,Th20,KRT

Rs.140 Rs. 175

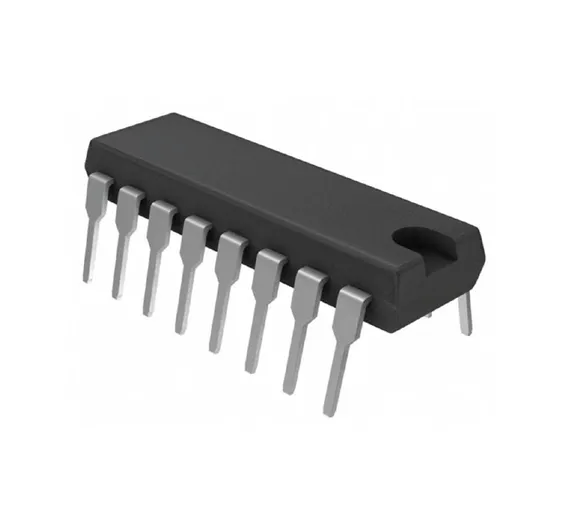

74HC151 is 8 - Input Multiplexer 16 Pin IC. Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three binary code at select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at a high level, disables all data inputs and forces Y output to low state and W output to a high state. Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients. Used for Boolean Function Generator.

Features:

  • Advanced oxide-isolated, ion-implanted Schottky TTL process
  • Switching performance is guaranteed over full temperature and VCC supply range
  • Pin and functionally compatible with LS family counterpart
  • Improved output transient handling capability

Specifications:

  • Type: CMOS
  • Voltage Rating: 5VDC
  • Temperature Rating: -65 to 165 Deg C
  • Mounting: Through Hole

DataSheet:

74HC151 IC Datasheet

Package Includes:

1 x 74hc151 IC
